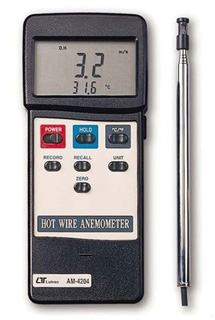

AM-4204 Hot Wire Anemometer
Brand |
Lutron |
Model No |
AM-4204 |
Display |
LCD |
Display Size |
13 mm |
Sampling Time |
Approx 0.8 sec |
Data Output |
RS 232 PC serial interface. |
Operating Temperature |
0 deg C to 50 deg C(32 deg F to 122 deg F) |
Power Current |
Approx DC 30 mA |
Weight |
355 g |
Dimensions |
180 x 72 x 32 mm |
Features
- Thermal anemometer, available for very low air velocity measurement
- Slim probe, ideal for grilles & diffusers.
- Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Super large LCD with dual function meter's display, read the air velocity & temp. at the same time.
- Heavy duty & compact housing case.
- Records Maximum and Minimum readings with recall
- Data hold.
- Auto shut off' saves battery life.
- Operates from 6 PCS UM-4 batteries.
- RS 232 PC serial interface.
- The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.
- Multi- functions for air flow measurement: m/s, km/h, ft/mm, knots. mile/h.
- Build in temperature 0C, 0 F measurement.
- Thermistor sensor for Temp. measurement, fast response time.
- Used the durable, long-lasting components, including a strong, light weight ABS- plastic housing case.
- Deluxe hard carrying case.
Applications :
Environmental testing, Air conveyors, Elow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case, Paint spray booths.
