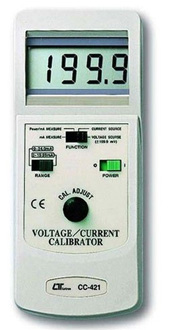

CC-421 Current Calibrator
| Brand | Lutron |
| Display | LCD |
| Weight | 265 gm |
| Sampling Time | Approx 0.4 second |
| Dimension | 185 x 78 x 38 mm |
| Model No | CC-421 |
| Operating Temperature | 0 deg C to 50 deg C (32 deg F to 122 deg F) |
| Operating Humidity | Less than 80% RH |
- The instruments Powers or Measure a two-wire current loop.
- Four function provide the quality and accuracy of handheld calibrator : a. Precision current source. b. Measurement of a current signal. c. Power and measurement of two wire loop. d. Precision DC mV source.
- Portable instrument for calibrating process devices and measuring process signals.
- Adjustable 0-24 mA current source.
- Adjustable -199.9 mV to +1.99.9 mV DC voltage source.
- Current calibrator drives loads up to 500 ohms.
