Pravin Electronics & Electricals

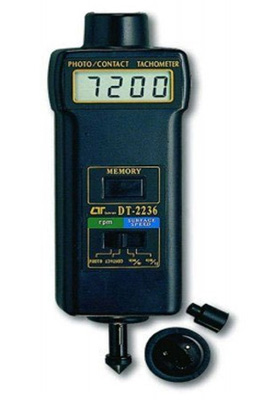

DT-2236 Digital Tachometer
| Accuracy | +/- ( 0.05% + 1 digit ) |
| Weight | 280 gm |
| Size | 195 x 61 x 38.5 mm |
| Display | LCD |
| Display Size | 5 digits, 10 mm |
| Time Base | Quartz crystal |
| Operating Temperature | 0 - 50 deg C ( 32 - 122 deg F) |
| Operating Humidity | Less than 80% R.H |
| Battery | 4 x 1.5V AA ( UM-3 ) batterie |
- World's patent, Multi-functions, one instrument combine Photo Tachometer RPM ) and Contact Tachometer ( RPM, m/min., ft/min. ).
- Wide measuring range from 0.5 to 100,000 RPM.
- 0.1 RPM resolution for the measured value < 1000 RPM.
- High precison with 0.05% accuracy.
- The last value, max., value, min. value will be stored into the memory automatically & can be obtained by pressing Memory Call Button.
- High visible LCD display gives RPM reading exactly with no guessing or errors & saves battery energy.
- This tachometer used the exclusive one chip Micro-Computer LSI circuit & crystal time base, offer the high accurate measurement & fast sampling time.
- The use of durable, long lasting components, including a strong, light weight ABS plastic housing, assures almost maintenance free performance for many years.
- The housing cabinet has been carefully shaped to fit comfortable in either hand.
