Application

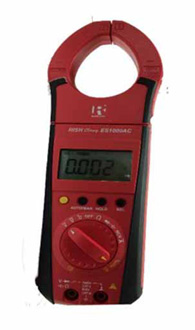

• RISH Clamp Es1000 AC/ES400 AC measures important electrical parameters like AC Current, AC Voltage, and DC Voltage. It also features Capacitance, Ohm & Continuity, frequency, and Duty cycle and temperature measurement.

Product Features

Unique Design, RISH Clamp ES1000 AC/ES400 AC is a highly innovative design for features those increases safety and comfort of user.

• Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access.
• Clamp jaws can be opened or closed with the trigger placed at bottom side away from the jaws. This allows the user to place his/her hand at safer distance from live conductor. This greatly reduces exposure of human beings to electrical shocks
• Location and design of trigger eliminates fatigues caused by single finger operation. It allows spreading the force required to open the jaws over more than one finger to ensure comfortable operation.
• Comfortable operation of push buttons and function selector switch, in adverse field conditions.

Large Jaw Opening

• For RISH Clamp ES1000 AC Jaw opening of 51mm for standard wire diameter of 50mm and for RISH Clamp ES400 AC Jaw opening of 41mm for standard wire diameter of 40mm for 400A.

Narrow Body

• Narrow housing for firm grip and easy to carry.

High Accuracy for low current measurement

• The clamp meter can measure accurately at not only the High currents but also Low current ranges.

User selectable Backlit

• It is possible to conduct measurement using the clamp meter during night time in darkness with the help of Backlit.

Temperature measurement

• Temperature from 0 to 1300 °C using K type thermocouple sensors..

Auto Power Off

• In order to save the power of the Batteries, the clamp meter will automatically shut OFF if it detects no activity for 15 minutes.

Relative Measurement

• By pressing REL key, the zero correction is made and relative value is measured. All functions can measure Relative value except Hz/Duty.

Hold Function

• By pressing HOLD key reading on the display can be latched. Simultaneously HOLD is displayed on display.

Hz / Duty

• The instrument can measure frequency (Hz) and Duty cycle (%) of AC voltage by pressing yellow key in VAC function.

Null Zero Correction for Resistance

• For Low ohm measurement, the lead resistance can be compensated by pressing REL key.

Non contact voltage (NCV) detection

• Presence of AC voltage >75 V AC 50/60 Hz can be detected by keeping jaws near voltage carrying conductor. It is indicated by beep sound.
