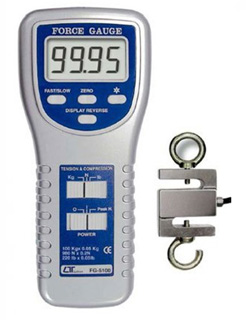

FG-5100 Lutron Force Gauge
| Brand | Lutron |
| Dimension | 215 x 90 x 45 mm |
| Weight | 450 gm |
| Resolution | 0.05 Kg/0.05 LB/0.2 Newton |
| Model No | FG-5100 |
| Display | LCD |
| Display Size | 16 mm |
| Overload Capacity | Max 150 Kg |
| Full Scale Deflection | Less than 1 mm |
| Power Supply | 6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included) |
| Power Consumption | Approx DC 28 mA |
| Operating Temperature | 0 to 50 deg C ( 32 to 122 deg F) |
| Operating Humidity | Less than 80% RH |
- Large LCD display with back light.
- Tension & compression capability.
- 100 Kg, wide capacity, high resolution, high accuracy,high repeatability
- 3 kind display unit, Kg/LB/Newton.
- Seperate sensor
- Peak hold ( Max. load ) can be held in display during make tension or compression measurement.
- Zero button can operate both for normal measuring & the " peak hold " operation
- Full capacity zero (tare) control capability
- Fast/Slow response time push button.
- Positive or reverse display direction select
- Over load protection
- Hand held & stand mounting available.
- Low power consumption gives long battery life.
- Build in low battery indicator
- Microprocessor circuit & exclusive load cell transducer
- RS-232 computer interface.
- Power supply built-in DC 9V adapter input socket.
