Model No. | FLUKE 107 |
Auto Power Off | Yes |
Data Hold | Yes |
Low Battery Indication | Yes |
Brand | Fluke |
Features | Palm-sized Digital Multimeter |
Warranty | 1 Year |

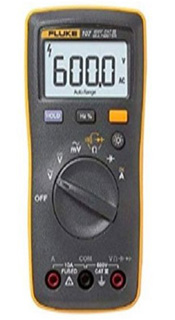

Specifications : Fluke 107 Palm-sized Digital Multimeter
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits])
Function | Range | Resolution | Accuracy |
AC Volts (40 Hz to 500Hz)1 |
6.000 V |
0.001 V | 1.0 % + 3 |
60.00 V |
0.01 V | ||
600.0 V | 0.1 V | ||
DC Volts | 6.000 V | 0.001 V | 0.5 % + 3 |
60.00 V | 0.01 V | ||
600.0 V | 0.1 V | ||
AC Millivolts | 600.0 mV | 0.1 mV | 3.0 % + 3 |
Diode Test2 | 2.000 V | 0.001 V | 10 % |
Resistance (Ohms) |
400.0 Ω |
0.1 Ω |
0.5 % + 3 |
4.000 kΩ |
0.001 kΩ |
0.5 % + 2 |
|
40.00 kΩ |
0.01 kΩ |
0.5 % + 2 |
|
400.0 kΩ |
0.1 kΩ |
0.5 % + 2 |
|
4.000 MΩ |
0.001 MΩ |
0.5 % + 2 |
|
40.00 MΩ | 0.01 MΩ | 1.5% + 3 | |
Capacitance3 | 50.00 nF |
0.01 nF |
2 % + 5 |
500.0 nF |
0.1 nF |
2 % + 5 |
|
5.000 μF |
0.001 μF |
5 % + 5 |
|
50.00 μF |
0.01 μF |
5 % + 5 |
|
500.0 μF |
0.1 μF |
5 % + 5 |
|
1000 μF | 1 μF | 5 % + 5 | |
Frequency4
Hz (10 Hz – 100 kHz) |
50.00 Hz |
0.01 Hz |
0.1 % + 3 |
500.0 Hz |
0.1 Hz |
||
5.000 kHz |
0.001 kHz |
||
50.00 kHz |
0.01 kHz |
||
100.0 kHz | 0.1 kHz | ||
Duty Cycle4 | 1 % to 99 % | 0.1 % | 1 % typical 5 |
AC Current (40 Hz to 200 Hz) |
4.000 A |
0.001 A |
1.5 % + 3 |
10.00 A | 0.01 A | ||
DC Current | 4.000 A |
0.001 A |
1.5 % + 3 |
10.00 A | 0.01 A |
