Pravin Electronics & Electricals

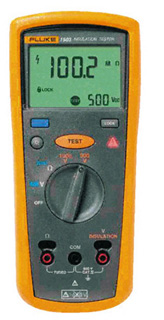

Fluke 1503 Digital Insulator Tester

Brand Fluke
Weight 550 gm
Accuracy +/- (1.5 % + 3)
Ip Rating IP40
Overload Protection 600 V rms or dc
Short Circuit Current Greater Than 200.0 mA
Operating Temperature -20 deg C to 55 deg C
(-4 deg F to 131 deg F)
Test Voltage Accuracy + 20 %, - 0 %
Storage Temperature -40 deg C to 60 deg C (-40 deg F to 140 deg F)
Size 5.0 x 10.0 x 20.3 cm ( H x W x L )
Model No Fluke 1503

These lightweight, affordable insulation testers are perfect for troubleshooting, commissioning and preventive maintenance applications.

Features
  • Automatic calculation of polarization index and dialectric absorption ratio (1507 only)
  • Multiple test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V (1507 only)
  • Remote test probe for rapid testing
  • Insulation test range 0.01 MΩ to 10 GΩ (1507), 0.1 MΩ to 2000 MΩ (1503)
  • Compare (Pass/Fail) function for repetitive tests (1507 only)
  • Live circuit detection prevents insulation test if voltage > 30 V is detected
  • Auto-discharge of capacitive voltage
  • AC/DC voltage: 0.1 V to 600 V
  • Lo ohms/Earth-bond continuity (200 mA) for checking connections and motor windings
  • Resistance: 0.01 Ω to 20.00 Ω
  • One-year warranty.
