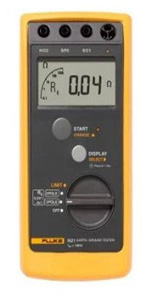

Fluke-1621 Earth Ground Tester

The Fluke 1621 is an easy-to-use earth ground tester. The first line of defense in detecting reliable ground connections, the unit features basic ground testing methods including 3-pole Fall-of-Potential as well as 2-pole ground resistance. Its convenient size, rugged holster, and large, clear LCD display make it an ideal field earth tester, for most work environments. With a simple user interface and intuitive functionality, the Fluke 1621 is a handy tool for electrical contractors, utility test engineers, and earth ground specialists.

Brand Fluke
Measuring Frequency 128 Hz
Weight 850 gm
Dimensions 113 x 54 x 216 mm
Operating Temperature 0 deg C to +35 deg C (+32 deg F to +95 deg F)
Measuring Rate 2 measurements/second
Battery One 9 volt alkaline (LR61)
Model No Fluke 1621
Climatic Class VDE/VDI 3540 RZ (conforming to KWG as per DIN 40040, 4/87)
Working Temperature -10 deg C to +50 deg C (+14 deg F to +122 deg F)
Storage Temperature -20 deg C to +60 deg C (+68 deg F to +140 deg F)
Reference Temperature +23 deg C +/- 2 deg C (+73 deg F +/- 4 deg F
Temperature Coefficient +/- 0.1 % of range per degree Kelvin
Test Voltage 3.7 kV
Protection Type IP 40; IEC/EN 60529
Open Circuit Voltage 23 to 24 V AC
Short Circuit Current Greater Than 50 mA AC
Maximum Permissible Overload 250 Veff
Features
  • Easily capture values with single-button operation
  • 3-pole Fall-of-Potential earth testing for basic measurements
  • 2-pole resistance measurements for added versatility
  • Ensure accurate measurements with automatic 'noise' voltage detection
  • Hazardous voltage warning offers increased user protection
  • Clearly read and record data with a large, backlit display
  • Rugged holster and design for tough work environments
  • Portable size allows for easy transportation
  • Instantly be alerted to measurements outside of your set limit, when you use the adjustable limit setting
  • 600 V Cat II
