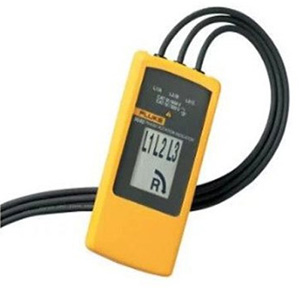

The Fluke 9040 is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Brand | Fluke |
Warranty | 2 Year |
Operating Temperature | 0 Deg C to 40 Deg C |
Size | 124 x 61 x 27 mm |
Weight | 200 g |
Model No | Fluke 9040 |
Voltage Range | 40-700 V |
Frequency Range | 15-400 Hz |
Dust Water Resistance | IP 40 |
Electrical Safety | EN 61010,EN 61557-7 |
Over Voltage Category | CAT III,600 V,CAT IV,300V |
