Pravin Electronics & Electricals

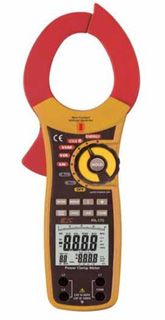

HTC PA-170 Power Clamp Meter
- Analysis for single phase and balanced 3 phase system
- True RMS Value (Voltage Current)
- Large LCD Display with Backlight
- USB interface
- Min/Max measurement
- True Power/Apparent power/ power factor measurement
- Data Hold/ Auto ranging / Overflow indication/ Auto power Off
- 2.16"(55mm) Jaw opening
| Brand | HTC |
| AC Current | 40A,100A,400A,1000A |
| AC Voltage | 15V,100V,300V,750V |
| Dimension | 295 x 100 x 46 mm ( H x W x D ) |
| Model No | PA-170 |
| True Power | 0.60kW-750kW |
| Apparent Power | 0.60 kVA-75 0kVA |
| Reactive Power | 0.60kVAr-750kVAr |
| Power Factor | 0.3-1 |
| Phase Angle | 0 deg -90 deg |
| Frequency | 20Hz-200Hz |
| Energy | 1-9999kWh |
