Pravin Electronics & Electricals

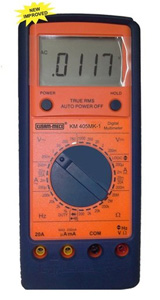

KM 405 MK-1 Digital TRMS Multimeter

Model Name/Number KM 405 \MK-1
Brand KUSAM MECO
Warranty 1 Year
Digit Display 4 1/2
Features - Auto Polarity Display. - Overrange Indication.
- Low Battery Indication. - Data Hold Function. - A
Operating Temperature 0 DegreeC to 50 DegreeC at < 70% R.H.
DC Voltage Accuracy +- (0.05%rdg + 3 dgts)
Features
  • Auto Polarity Display.
  • Overrange Indication.
  • Low Battery Indication.
  • Data Hold Function.
  • Auto power off
  • Shock Resistant & Fire Retardant Casing.
  • Input warning beeper
  • Logic test, Diode Test & Continuity Test
  • Duty Cycle Function.
  • CE approved
General Specification
  • Sensing : True RMS Sensing.
  • Basic Accuracy : ± (0.05%rdg + 3 dgts)
  • Display : 4 ½ digits, 19999 counts large LCD display with function and unit sign annunciators.
  • Display Size : 17 mm
  • Over range indication:"1" most significant digit blinks.
  • Low battery indication : The is displayed when the battery voltage drops below the operating level.
  • Polarity : Automatic, (-) negative polarity indication.
  • Auto power off : Meter automatically shuts down after approx.45 minutes of inactivity.
  • Altitude : 6561.7 (2000M)
  • Measurement rate : 2.5 times per second, nominal
  • Operating Temperature : 0°C to 50°C at < 70% R.H.
  • Storage Temperature : -20°C to 60°C, 0 to 80 % R.H with battery removed from meter.
  • Temperature Coefficient : 0.1 x (specified accuracy) / °C (0°C ~ 18° or 28°C ~ 50°C)
  • Power : Single 9V Alkaline battery.
  • Battery life : 500 hours typical with alkaline.
  • Dimension : 198(H) x 90(W) x 44(D)mm.
  • Weight : Approx. 400g including battery.
