Pravin Electronics & Electricals

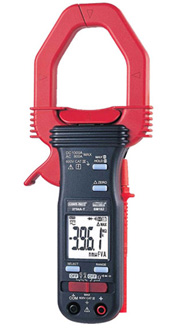

Kusum-Meco 2754A / 2754A-T 1000 A DC / 800 A AC AVG / TRMS Clampmeter

Kusum-Meco 2754A / 2754A-T 1000 A DC / 800 A AC AVG / TRMS Clampmeter
Product Catalogue
Special Features
  • DC 1000A / AC 800A Clamp-on + Full Multimeter ranges
  • Versatile & Handy
  • Fully Auto-ranging on all functions
  • Backlighted Display (Model 2754A-T)
  • 30ms Max HOLD to capture in-rush currents
  • Data Hold, Max Hold & Relative Zero Mode
  • Fast Audible continuity Test & Diode Test
  • Auto power off

1000ADC / 800A AC, 4000 Counts Clamp-on DMM

Model - 2754 A - AVERAGE SENSING (16 Function 30 Ranges)
2754 A-T - TRUE RMS SENSING (17 Function 30 Ranges)

General Specifications
  • Sensing : Average sensing (Model 2754A)
    AC TRMS Voltage & Current functions (Model 2754A-T)
  • Jaws Opening size : 50mm Max.
  • Display : 3 ¾digits 4000 counts
  • Update Rate : 3 per second nominal
  • Polarity : Automatic
  • Operating Temperature : 0°C ~ 40°C
  • Relative Humidity : Maximum 80%R.H. for Temperature upto 31°C decreasing linearly to 50% R.H. at 40°C
  • Altitude : Operating below 2000m
  • Storage Temperature : -20°C ~ 60°C, < 80% R.H. (With battery removed)
  • Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (0°C ~ 18°C or 28°C ~ 40°C), or otherwise Specified
  • Pollution Degree: 2
  • Transient Protection: 6.5kV (1.2/50µs) surge
  • Low Battery: Below approx. 2.5V
  • Power Supply : Standard 1.5V AAA Battery x 2
  • Power Consumption : Typical 11mA for DCA / ACA & 2.9mA for other functions
  • APO Consumption : 190µA typical
  • APO timing : Idle for 30 minutes
  • Dimension : 227(L) x 78(W) x 40(H) mm
  • Weight : approx 290 gm
Send Enquiry
