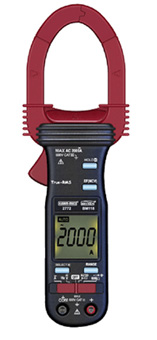

Kusum-Meco 2772 2000 A AC TRMS Clampmeter
- Sensing : True RMS sensing
- Jaws opening size : 45mm max.
- Display : 3-5/6 digits 6000 counts
- Update Rate : 5 per second nominal
- Polarity : Automatic
- Operating Temperature : 0°C ~ 40°C
- Relative Humidity : Max. R.H. 80% for temperature upto 31 °C decreasing linearly to 50% R.H. at 40 °C
- Storage Temperature : -20 C to 60 C, < 80% R.H. (With battery removed)
- Altitude : Operating below 2000m
- Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (0 °C ~ 18 °C or 28 °C ~ 40 °C) or otherwise specified.
- Low Battery Indication : Below approx. 2.4 V
- Power Supply : Standard 1.5V AAA battery X 2
- Power Consumption : 2.8mA typical
- APO Consumption : 230 µ A typical on Voltage & Current function
- APO Timing : Idle for 3 minutes
- Dimension : 224(L) x 78(W) x 40(H)mm
- Weight : approx. 220gm
2000 A AC True Rms Digital Clamp Meter With Non-Contact EF-Detection
MODEL - 2772 ( 20 Functions 21 Ranges)
