Pravin Electronics & Electricals

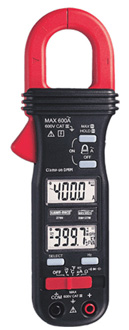

Kusum-Meco 2799 Dual Display Clampmeter

Kusum Meco 2799 Dual Display Clampmeter
Product Catalogue
Special Features
  • For HVAC application
  • Fully auto ranging on all functions.
  • Overload protection on all ranges.
  • Data - Hold, Max. Hold function
  • Simultaneous A + V, A + W, A + °C
  • Diode test & fast audible continuity
  • Auto power off

3 ¾ Digits 4000 Counts Dual LCD Display Digital Clamp + Multi Meter

MODEL - 2799 ( 12 Functions 31 Ranges )

General Specifications
  • Sensing : Average sensing.
  • Jaw Opening Size : 26mm Max.
  • Display : 3¾ digits 4000 counts LCD displays
  • Update Rate : 3 per second nominal
  • Polarity : Automatic
  • Low Battery : Below approx. 2.4V
  • Operating Temperature : 0 °C to 40 °C,< 80% R.H.
  • Storage Temperature : -20 °C to 60 °C,< 80% RH (with battery removed)
  • Temperature Coefficient : Nominal 0.15x (specified accuracy)/ °C @(0 °C-18 °C or 28 °C-40 °C)or otherwise specified
  • Altitude : Operating below 2000m
  • Power supply : Standard 3V coin batteries x 2
  • Power Consumption : 2.8 mA typical except that 3.3mA typical for ACA function
  • APO Timing : Idle for 30 minutes
  • APO Consumption : 5 µA typical except that 40 µA typical on Voltage function
  • Dimension : 190(L)mm x 63(W)mm x 32(H)mm
  • Weight : 139gm approx.
