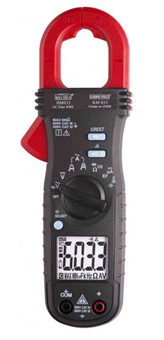

Kusum-Meco KM 033 AC True RMS Digital Clampmeter with EF-Detection, AMPTip Function for Low Current Measurement
Special Features
- AmpTip ™ low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
- MAX / MIN Recording mode.
- MAX / MIN Crest (Peak-Hold) mode.
- Relative-zero mode.
- Display Hold
- EF-Detection (NCV).
- Back-lighted easy-to-read LCD display
- Fully Autoranging
- BeepLit &trade Feature
AC True RMS Digital Clampmeter with EF-Detection, AMPTip Function for Low Current Measurement
Model KM 033
General Specifications
- Sensing : True RMS
- Jaws Opening size : 26mm Max.
- Display : 3-5/6 digits 6000 counts
- Update Rate : 5 per second nominal
- Polarity : Automatic
- Operating Temperature : 0ºC to 40ºC
- Relative Humidity : Maximum relative humidity 80% for temperature up to 31ºC decreasing linearly to 50% relative humidity at 40ºC
- Altitude : Operating below 2000m
- Storage Temperature : -20°C ~ 60°C, \ < 80% R.H. (with battery removed)
- Temperature Coefficient : Nominal 0.1 x (specified accuracy) / °C @ (0°C –– 18°C or 28°C –– 40°C), or otherwise specified
- Power Supply : Standard 1.5V AAA Size Battery X 2
- Power Consumption : typical 4mA
- Low Battery : Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V for other functions
- APO timing : Idle for 32 minutes
- APO Consumption : typical 5A
- Dimension : 188(L) x 66(W) x 32(H)mm
- Weight : approx 158 gms.
