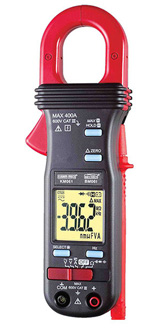

Kusum-Meco KM 061 / KM 062 400A DC/AC Clamp-On Meter Model
Special Features
- Measure line-level ACV frequency via test leads
- Relative Zero feature
- 4000 Counts high resolution, Fast measurements
- Versatile & Handy
- Backlight display (KM 062)
- Fully Autoranging on all functions for ease of use
- AC True RMS Voltage & Current Functions (KM 062)
- 30ms Max HOLD to capture in-rush currents
- DCA / ACA 0.1A to 400A non-invasive current measurements.
- Display Hold, PEAK-rms MAX HOLD & Data Hold
- Fast Audible Continuity
- Diode Test
400A Dc/Ac Autoranging True RMS Clamp-On Meter With Full Multimeter Ranges
Model KM 061 -AVERAGE SENSING - 18 FUNCTION 37 RANGES
Model KM 062 - TRUE RMS SENSING - 20 FUNCTION 37 RANGES
General Specifications
- Sensing : Average Sensing (KM 061) ; True RMS sensing (KM 062)
- Jaw opening & Conductor diameter : 30mm max
- Display : 3-3/4 digits 4000 counts LCD display
- Update Rate : 3 per second nominal
- Polarity : Automatic
- Low Battery : Below approx 2.4V
- Operating Temperature : 0 °C to 40 °C
- Relative Humidity : Maximum relative humidity 80% for temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40 °C
- Altitude : Operating below 2000m
- Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
- Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 C-18 °C or 28 C-40 °C), or otherwise specified
- Power supply : Standard 1.5V AAA Battery x 2.
- Power Consumption : DCA & ACA : 11mA typical Other function : 2.9mA typical
- APO Timing : Idle for 30 minutes
- APO Consumption : 190 µA typical
- Dimension : 188(L) x 63(W) x 40(H) mm
- Weight : Approx. 218 gms
