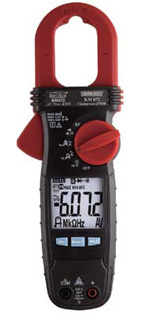

Kusum-Meco KM 072 600A AC True RMS Digital Clampmeter
- AmpTip ™ low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
- MAX/MIN/AVG Recording mode (Auto ranging)
- VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
- Display Hold & Non-Contact EF-Detection (NCV)
- Probe-Contact EF-Detection.
- Sensing : AC; True RMS
- Jaws Opening size & conductor diameter : 30mm Max.
- Display : 3-5/6 digits 6000 counts
- Update Rate : 5 per second nominal
- Polarity : Automatic
- Operating Temperature : 0° C to 40° C
- Relative Humidity : Maximum relative humidity 80% for temperature up to 31 °C decreasing linearly to 50% relative humidity at 40° C
- Altitude : Operating below 2000m
- Storage Temperature : -20 °C ~ 60 °C, <80% R.H. (with battery removed)
- Temperature Coefficient : Nominal 0.15 x (specified accuracy) / ° C @ (0 ° C - 18 ° C or 28 ° C - 40 ° C), or otherwise specified
- Power Supply : Standard 1.5V AAA Size Battery X 2
- Power Consumption : typical 4.3mA
- Low Battery :- Below approx. 2.85V for Capacitance & Hz,- Below approx. 2.5V for other functions
- APO timing : Idle for 32 minutes
- APO Consumption : typical 5 µA
- Dimension : 217(L) x 76(W) x 37(H)mm
- Weight : approx 186 gms.
