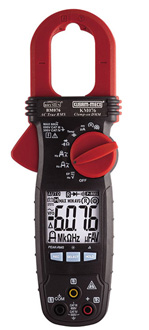

Kusum-Meco KM 076 600A AC True RMS Digital Clampmeter
Special Features
- AmpTip ™ low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
- MAX/MIN/AVG Recording mode (Auto ranging)
- VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
- Display Hold & Non-Contact EF-Detection (NCV)
- Back-lighted easy-to-read LCD display
- Fast 80ms Peak-RMS mode to capture in-rush currents
- Auto-ranging Relative mode with DC-Zero mode & 5ms Crest (Instantaneous Peak-Hold) mode
- 3-Phase Rotation-R for MAINS supply (Probe contact)
- 3-Phase Rotation-M (Hi-sensitivity mode) for Motors (Probe-contact)
600A AC True Rms Digital Clampmeter VFD, EF-detection, Amptip Function For Low Current Measurement & 3 Phase Rotation Check Function & 3 Phase Sequence Indication
Model KM 076 - 25 Functions 23 Ranges
General Specifications
- Sensing : AC;True RMS
- Jaws Opening size & conductor diameter : 30mm Max.
- Display : 3-5/6 digits 6000 counts
- Update Rate : 5 per second nominal
- Polarity : Automatic
- Operating Temperature :0ºC to 40ºC
- Relative Humidity : Maximum relative humidity 80% for temperature up to 31ºC decreasing linearly to 50% relative humidity at 40ºC
- Altitude : Operating below 2000m
- Storage Temperature : -20 °C ~ 60 °C, <80% R.H. (with battery removed)
- Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified
- Power Supply : Standard 1.5V AAA Size Battery X 2
- Power Consumption : typical 4.3mA
- Low Battery: Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V for other functions
- APO timing : Idle for 32 minutes
- APO Consumption : typical 5µA
- Dimension : 217(L) x 76(W) x 37(H)mm
- Weight : approx 186 gms.
