Pravin Electronics & Electricals

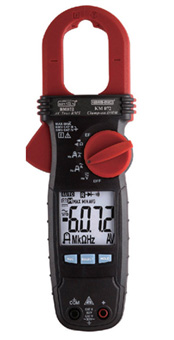

Kusum-Meco KM 078 AC+DC TRUE RMS True RMS Digital Clampmeter With VFD

Kusum-Meco KM 078 AC+DC TRUE RMS True RMS Digital Clampmeter With VFD
Product Catalogue
Special Features
  • AmpTip ™ low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
  • MAX/MIN/AVG Recording mode (Auto ranging)
  • VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
  • Display Hold & Non-Contact EF-Detection (NCV)
  • Back-lighted easy-to-read LCD display
  • Fast 80ms Peak-RMS mode to capture in-rush currents
  • Auto-ranging Relative mode with DC-Zero mode & 5ms Crest (Instantaneous Peak-Hold) mode

AC+DC True Rms Digital Clampmeter With VFD, EF-Detection, Amptip Function For Low Current Measurement

MODEL KM 078

General Specifications
  • Sensing : AC+DC; True RMS
  • Jaws Opening size : 35mm Max.
  • Display : 3-5/6 digits 6000 counts
  • Update Rate : 5 per second nominal
  • Polarity : Automatic
  • Operating Temperature :0°C to 40°C
  • Relative Humidity : Maximum relative humidity 80% for temperature up to 31 °C decreasing linearly to 50% relative humidity at 40ºC
  • Altitude : Operating below 2000m
  • Storage Temperature : -20 °C ~ 60 °C, / < 80% R.H. (with battery removed)
  • Temperature Coefficient : Nominal 0.15 x (specified accuracy) / ° C @ (0 ° C- 18 ° C or 28 ° C - 40 ° C), or otherwise specified
  • Power Supply : Standard 1.5V AAA Size Battery X 2
  • Power Consumption : typical 13mA
  • Low Battery : Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V for other functions
  • APO timing : Idle for 32 minutes
  • APO Consumption : typical 5 µA
  • Dimension : 223(L) x 76(W) x 37(H)mm
  • Weight : approx 234 gms.
