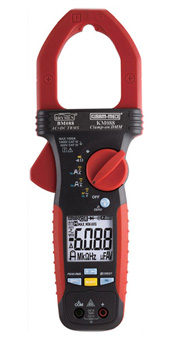

Kusum-Meco KM 088 1000A AC/DC True RMS Digital Clampmeter

Kusum Meco KM 088 1000A AC DC True RMS Digital Clampmeter
Product Catalogue
Special Features
  • AmpTip ™ low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
  • MAX/MIN/AVG Recording mode (Auto ranging)
  • VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
  • Display Hold & Non-Contact EF-Detection (NCV)
  • Back-lighted easy-to-read LCD display
  • Back-lighted easy-to-read LCD display
  • BackFlashlight for easy operation in dim areas
  • BackFast 80ms Peak-RMS mode to capture in-rush currents
  • BackAuto-ranging Relative mode with DC-Zero mode & Back5ms Crest (Instantaneous Peak-Hold) mode

1000A AC/DC True RMS Digital Clampmeter With VFD, EF-Detection

Model KM 088 ( 27 Functions 46 Ranges )

General Specifications
  • Sensing : AC;True RMS
  • Jaws Opening size & conductor diameter : 51mm Max.
  • Display : 3-5/6 digits 6000 counts
  • Update Rate : 5 per second nominal
  • Polarity : Automatic
  • Operating Temperature : -10 ºC to 50 ºC
  • Relative Humidity : Non condensing ( <10ºC) Maximum 90%R.H. at 10-30°C decreasing linearly to 75% R.H. at 30-40°C & 45% R.H. at 40-50°C
  • Altitude : Operating below 2000m, Storage below 12000m
  • Storage Temperature : -20 °C ~ 60 °C, < 80% R.H. (with battery removed)
  • Temperature Coefficient : Nominal 10.0 x (specified accuracy) / °C @ (-10 °C- 18 °C or 28 °C - 50 °C), or otherwise specified
  • Power Supply : Standard 1.5V AA Battery X 2
  • Power Consumption : typical 13 mA for Current Functions
  • Low Battery: Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V for other functions
  • APO timing : Idle for 32 minutes
  • APO Consumption : typical 5µA
  • Dimension : 258(L) x 94(W) x 44(H)mm
  • Weight: : approx 392 gms.
Send Enquiry
