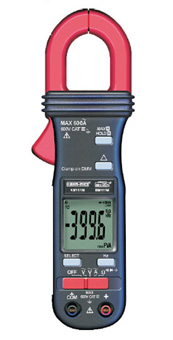

Kusum-Meco KM 111M / KM 112M 3 DIGITS Digital Clampmeter

Kusum-Meco KM 111M / KM 112M 3 DIGITS Digital Clampmeter
Product Catalogue
Special Features
  • 600A AC Clamp-on + Multimeter ranges
  • Ultra-slim jaws to access tight places
  • Light weight & compact body to fit your hand
  • Fully Auto-ranging for fast measurements
  • Input Protection on all ranges
  • Fast 30ms MAX Hold to capture in-rush currents
  • Relative Zero mode
  • Measures non-invasive ACA Frequency via clamp jaws
  • Line level frequency measurements
  • Data Hold function

3 ½ Digits Digital Clampmeter + Multimeter D, EF-Detection & PC Interface

Model KM 111M - Average Sensing - 18 Functions 30 Ranges
Model KM 112M -True RMS Sensing - 19 Functions 30 Ranges

General Specifications
  • Sensing : Average sensing (KM 111M ); True RMS Sensing (KM 112M)
  • Jaw Opening Size : 26mm
  • Basic Accuracy : 0.5%
  • Display : 3¾ Digits 4000 counts LCD display
  • Update Rate : 3 per second nominal
  • Polarity : Automatic
  • Low Battery : Below approx. 2.4V.
  • Operating Temperature: 0°C to 40°C.
  • Relative Humidity: Maximum relative humidity 80% for temperature upto 31°C decreasing linearly to 50% relative humidity at 40°C
  • Altitude : Operating below 2000m
  • Storage Temperature : -20 °C ~ 60 °C,< 80% R.H. (With Battery removed)
  • Temperature Coefficient : Nominal 0.15 x (specified accuracy) / °C @ (0 °C ~ 18 °C or 28 °C ~ 40 °C), or otherwise specified.
  • Power Supply : Single 3V coin Battery IEC CR-2032.
  • Power Consumption : 2.8 mA typical, except 3.3 mA typical for current function.
  • APO Timing : Idle for 30 minutes.
  • APO Consumption : 5 µA typical.
  • Dimension : 190(L) x 63(W) x 32(H)mm
  • Weight : Approx. 139gm
