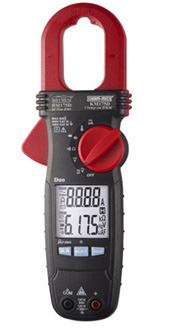

Kusum-Meco KM 175D AC True RMS Digital Clampmeter
Product Catalogue
Special Features
AmpTip ™ low-current range
Backlighted LCD display.
Duo-Core to simultaneously measure clamp-on Amps + A DMM functions.
VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
Display Hold & Non-Contact EF-Detection (NCV)
AC True RMS Voltage & Current functions.
Fast 80ms Peak-RMS mode to capture in-rush currents
Probe contact EF-Detection for more precise indication of live.
Line level ACV frequency 10.00Hz to 999.9Hz.
Cx ranges 200.0 µF to 2500 µF for start & Run Motor Capacitors.
AC True RMS Digital Clampmeter
Model KM 175D
General Specifications
Sensing : True RMS
Jaws Opening size & conductor diameter : 30mm Max.
Display : 3-5/6 digits 6000 counts, dual display
Update Rate : 5 per second nominal
Polarity : Automatic
Operating Temperature : 0° C to 40° C
Relative Humidity :- Maximum 80%R.H. for temperature upto 31°C decreasing linearly to 50% R.H. at 40 ° C
Altitude : Operating below 2000m
Storage Temperature : -20 °C ~ 60 °C, < 80% R.H. (with battery removed)
Temperature Coefficient : Nominal 0.15 x (specified accuracy) / ° C @ (0 ° C - 18 ° C or 28 ° C - 40 ° C), or otherwise specified
Power Supply : Standard 1.5V AAA Size Battery X 2
Power Consumption : typical 6.2 mA
Low Battery :- Below approx. 2.85V for Capacitance & Hz - Below approx. 2.5V for other functions
APO timing : Idle for 32 minutes approx
APO Consumption : typical 5 µA
Dimension : 217(L) x 76(W) x 37(H)mm
Weight : approx 189 gms.
