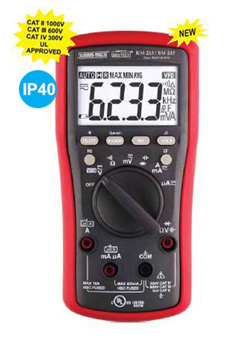

Kusum-Meco KM 233 3-5/6 Digit 6000 Counts Digital Multimeter With VFD, EF-Detection
Special Features
- VFD V & Hz Function
- BeepLit Continuity, Features Audible Beep & Visible Backlight Effects
- EF-Detection (NCV)
- Beep-Jack Input warning on mAmA/A terminals plug in
- Paper White Backlight Display
- Auto-ranging Relative Zero Mode
- Auto Power Off
- Low Battery Indication
- Auto-ranging MAX/MIN/AVG record
- Display Hold
- Diode & Continuity Test
- Rugged Fire retarded casing.
3-5/6 Digit 6000 Counts Digital Multimeter With VFD, EF-Detection
MODEL KM 233 (21 functions 39 ranges)
General Specifications
- Sensing : TRUE RMS sensing
- Display : 3-5/6 digits 6000 counts LCD display
- Operating Temperature : -10°C to 45°C
- Storage Temperature: -20°C to 60°C, <80% R.H. With battery removed from meter.
- Update Rate : 5 per second nominal
- Relative Humidity : Maximum relative humidity 80% for temperature upto 31°C decreasing linearly to 50% relative humidity at 45 °C
- Altitude : Operating Below 2000m Pollution Degree : 2
- Temperature Coefficient : nominal 0.15 x (specified accuracy) /°C @ (0°C~18°C or 28°C~45°C), or otherwise specified.
- Low battery : Below approx. 2.5V
- Power Consumption : Typical 3.2 µ A
- APO Consumption : Typical 10 µ A
- APO Timing : Idle for 30 minutes
- Power Supply : 1.5V AAA battery x 2
- Dimension : 161(L) X 80(W) X 50(H) mm (with Holster)
- Weight : Approx. 334 gm ( with Holster)
