Pravin Electronics & Electricals

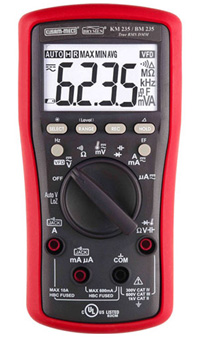

Kusum-Meco KM 235 3-5/6 Digits(6000 Counts) TRMS Digital Multimeter with VFD, EF-Detection

Special Features
  • VFD V & Hz Function
  • EF-Detection (NCV)
  • Paper White Backlight Display
  • Auto-ranging Relative Zero Mode
  • Auto Power Off
  • Low Battery Indication
  • Display Hold
  • Diode & Continuity Test
  • Type-K Temperature
  • BeepLit Continuity, Features Audible Beep & Visible Backlight Effects
  • Beep-Jack Input warning on mAmA/A terminals plug in
  • Auto-ranging MAX/MIN/AVG record
  • AutoV LoZ Feature. Automatic DC & AC1000V Selection with Low Initial Impedance to drain ghost voltages.
  • Rugged Fire retarded casing.

3-5/6 Digit 6000 Counts TRMS Digital Multimeter WITH VFD, EF-Detection

MODEL KM 235

General Specifications
  • Sensing : TRUE RMS sensing
  • Display : 3-5/6 digits 6000 counts LCD display
  • Update Rate : 5 per second nominal
  • Operating Temperature : -10 °C to 45 °C
  • Relative Humidity : Maximum relative humidity 80% for temperature upto 31°C decreasing linearly to 50% relative humidity at 45 °C
  • Altitude : Operating Below 2000m.
  • Storage Temperature: -20 °C to 60 °C, <80% R.H. With battery removed from meter. Pollution Degree : 2
  • Temperature Coefficient : nominal 0.15 x (specified accuracy) /°C @ (0°C~18°C or 28°C~45°C), or otherwise specified.
  • Low battery : Below approx. 2.5V
  • Power Consumption : Typical 3.2mA
  • APO Consumption : Typical 10mA
  • APO Timing : Idle for 30 minutes
  • Power Supply : 1.5V AAA battery x 2
  • Dimension : 161(L) X 80(W) X 50(H) mm (with Holster)
  • Weight : Approx. 334 gm ( with Holster)
