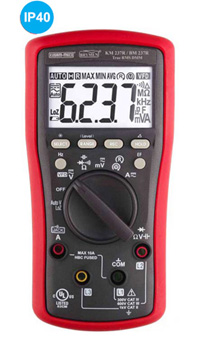

Kusum-Meco KM 237 TRMS Digital Multimeter With VFD, Ef-detection 3 phase Rotation-R & 3 phase Rotation-M

Kusum-Meco KM 237 TRMS Digital Multimeter With VFD, Ef-detection 3 phase Rotation-R & 3 phase Rotation-M
Product Catalogue
Special Features
  • Auto V(LoZ), VFD V & Hz Function
  • BeepLit Continuity, Features Audible Beep & Visible Backlight Effects
  • Display Hold
  • EF-Detection (NCV)
  • Beep-Jack Input warning against improper A-terminal plug in
  • Low Battery Indication
  • Paper White Backlight Display
  • Auto-ranging Relative Zero Mode
  • Auto Power Off
  • 3phase rotation-R(Regular-sensitivity mode) for supply systems(probe-contact)
  • Auto-ranging MAX/MIN/AVG record
  • 3phase rotation-M (Hi-sensitivity mode) for Motors (probe-contact)
  • Diode & Continuity Test
  • Rugged Fire retarded

TRMS Digital Multimeter With VFD, Ef-detection 3 phase Rotation-R & 3 phase Rotation-M

MODEL KM 237R (29 functions 37 ranges) )

General Specifications
  • Sensing : TRUE RMS AC conversion
  • Display : 3-5/6 digits 6000 counts LCD display
  • Temperature Coefficient : nominal 0.15 x (specified accuracy) /°C @ (-10°C~18°C or 28°C~45°C), or otherwise specified.
  • Update Rate : 5 per second nominal
  • Operating Temperature : -10°C to 45°C
  • Update Rate : 5 per second nominal
  • Relative Humidity : Maximum relative humidity 80% for temperature upto 31°C decreasing linearly to 50% relative humidity at 45 °C
  • Altitude : Operating Below 2000m Pollution Degree : 2
  • Storage Temperature: -20 °C to 60 °C, <80% R.H. With battery removed from meter.
  • Temperature Coefficient : nominal 0.15 x (specified accuracy) /°C @ (0 °C~18 °C or 28 °C~45 °C), or otherwise specified.
  • Low battery : Below approx. 2.5V
  • Power Consumption : Typical 3.2mA
  • APO Consumption : Typical 10 µ A
  • APO Timing : Idle for 30 minutes
  • Power Supply : 1.5V AAA battery x 2
  • Dimension : 161(L) X 80(W) X 50(H) mm (with Holster)
  • Weight : Approx. 334 gm ( with Holster)
