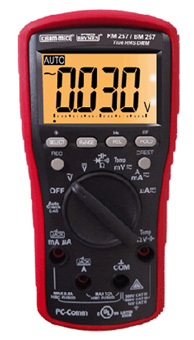

Kusum-Meco KM 257 3-5/6 DIGIT 6000 Voltage Tester Counts Digital Multimeter With EF - Detection & Computer Interface
Special Features
- Autocheck V & Ω
- EF-Detection (NCV)
- Crest Mode (Peak Hold), Data Hold function
- 24 Segments Analog Bar-graph
3-5/6 DIGIT 6000 Voltage Tester Counts Digital Multimeter With EF - Detection & Computer Interface
MODEL - KM 257 (20 functions 50 ranges)
General Specifications
- Sensing : Average Sensing
TRUE RMS (Model KM 257)
- Display : 3-5/6 digits 6000 counts LCD display
- Update Rate : Fast Data : 5 per second nominal 24 Segments Analog Bar-graph : 40/second
- Operating Temperature : 0 °C to 40 °C,at <70% R.H.
- Relative Humidity : Maximum relative humidity 80% for temperature upto 31°C decreasing linearly to 50% relative humidity at 40°C
- Storage Temperature: -20 °C to 60 °C, <80% R.H. With battery removed from meter.
- Altitude : 2000m
- Pollution Degree : 2
- Temperature Coefficient : nominal 0.15 x (specified accuracy)/°C @ (0°C~18°C or 28°C~40°C), or otherwise specified.
- Low battery : Below approx. 2.3V
- Power Consumption : 3.5mA
- APO Consumption : 10µA typical
- APO Timing : Idle for 34 minutes
- Power Supply : 1.5V AAA battery x 2
- Dimension : 161(L) X 80(W) X 50(H) mm
- Weight : Approx. 340 gm ( with Holster)
