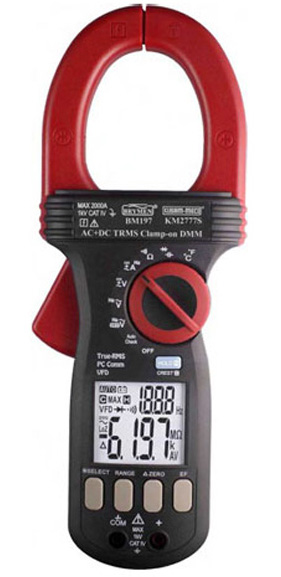

Kusum-Meco KM 2778 AC / DC TRMS Clamp-On Multimeter with VFD, EF-Detection, PC Interface & Extended 1500V DC Range
Special Features
- Extended >1000 ~ 1500V DC range suitable for solar ™
- Aut Check Voltage & Ohms
- VFD-V & VFD-Hz function
- 5ms CREST-MAX capture mode (Peak Hold)
- Autoranging Relative -Zero mode
- Display Hold function
- EF-Detection (NCV)
- Backlight LCD Display
- Auto Power Off
- Diode Test & Continuity Test
- PC Interface (Optional)
AC / DC TRMS Clamp-On Multimeter with VFD, EF-Detection, PC Interface & Extended 1500V DC Range
Model KM 2778
General Specifications
- Sensing : TRMS sensing
- Jaw Opening : 55mm max.
- Display : 3-5/6 digits 6000 counts & 3 1/2 digits 1,999 counts for Hz.
- Update Rate : 5 per second nominal
- Polarity : Automatic
- Low Battery : Below approx 2.4V
- Operating Temperature : 0 °C to 40 °C
- Relative Humidity : Maximum 80% R. H. for temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40 °C
- Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
- Altitude : Operating below 2000m
- Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 °C--18 °C or 28 °C--40 °C), or otherwise specified
- Power supply : Standard 1.5V AAA Battery x 2.
- Power Consumption : Typical 14mA for Current function,& 5.2mA for others.
- APO Timing : Idle for 34 minutes
- APO Consumption : 10?A typical
- Dimension : 264(L) x 97(W) x 43(H) mm
- Weight : Approx. 608gm.
- Accessories : Test leads (pair), user's manual, Bkp60 banana plug K-type Thermocouple x 1 & carrying case.
- Optional Accessories : USB interface kit BRUA-19X, BKB32 banana plug to type-K socket plug adaptor
