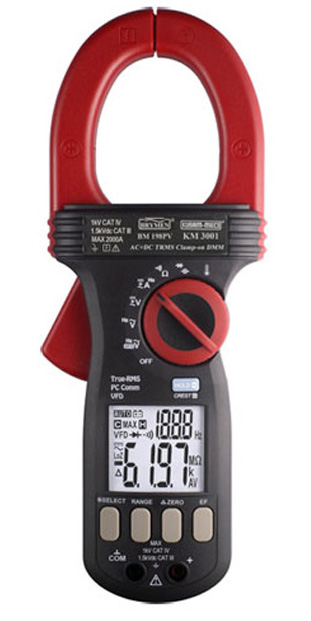

Kusum-Meco KM 3001 AC / DC TRMS Clamp-On Multimeter with VFD, EF-Detection, PC Interface For Solar Application

Kusum-Meco KM 3001 AC / DC TRMS Clamp-On Multimeter with VFD, EF-Detection, PC Interface For Solar Application
Product Catalogue

AC / DC TRMS Clamp on multimeter VFD, EF-Detection, PC Interface For Solar Application

Model KM 3001

Special Features
  • Sensing : TRMS sensing
  • Jaw Opening : 55mm max.
  • Display : 3-5/6 digits 6000 counts & 3½ digits 1,999 counts for Hz.
  • Update Rate : 5 per second nominal
  • Polarity : Automatic
  • Low Battery : Below approx < 2.4V
  • Operating Temperature : 0 ° C to 40 °C
  • Relative Humidity : Maximum 80% R. H. for temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40oC
  • Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
  • Altitude : Operating below 2000m
  • Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 °C-18 °C or 28 °C-40 °C), or otherwise specified
  • Power supply : Standard 1.5V AAA Battery x 2.
  • Power Consumption : Typical 14mA for Current function, & 5.2mA for others.
  • APO Timing : Idle for 34 minutes
  • APO Consumption : 10mA typical
  • Dimension : 264(L) x 97(W) x 43(H) mm
  • Weight : Approx. 608gm.
  • Accessories : Test leads (pair), user's manual, Bkp60 banana plug K-type Thermocouple x 1 & carrying case.
  • Optional Accessories : USB interface kit BRUA-19X, BKB32 banana plug to type-K socket plug adaptor
