Pravin Electronics & Electricals

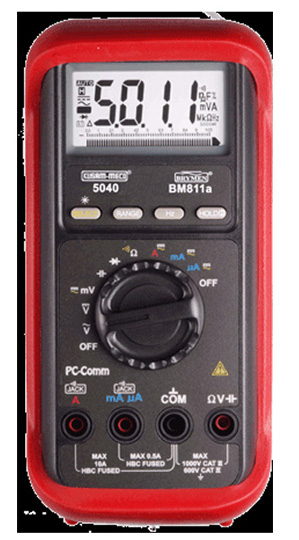

Kusum-Meco KM 5040 3 4/5 DIGIT 5000 Counts Digital Multimeter With Analog Bar Graph & RS232 Computer Interface

Kusum-Meco KM 5040 3 4/5 DIGIT 5000 Counts Digital Multimeter With Analog Bar Graph & RS232 Computer Interface
Product Catalogue
Special Features
  • Auto lead zero function
  • 50ms record MAX-MIN readings at fast 20/second measurement mode
  • 0.8ms Crest (instantaneous Peak-HOLD)
  • Data Hold & Range- Hold
  • Backlighted Display
  • Autoranging
  • Audible & Visible input warning.
  • Optical isolated RS232 PC-interface capabilities
  • MAX-MIN readings
  • Relative-Zero offset mode
  • Auto power off

3 4/5 DIGIT 5000 Counts Digital Multimeter With Analog Bar Graph & RS232 Computer Interface

Model - 5040 (13 functions 45 ranges)

General Specifications
  • Sensing : Average Sensing
  • Display : 3-4/5 digits 5000 counts LCD display
  • Update Rate :
    Fast data : 5 / second nominal;
    52 Segment Bar-graph : 60 per second nominal.
  • Operating Temperature : 0 °C to 45 °C
  • Relative Humidity : Maximum relative humidity 80% for temperature upto 31 ° C decreasing linearly to 50% relative humidity at 45 ° C
  • Storage Temperature : -20 °C to 60° C, 80% R.H. (With battery removed)
  • Pollution degree : 2
  • Altitude : Operating below 2000m
  • Temperature Coefficient : nominal 0.15 x (specified accuracy)/ °C
    @ (0 °C to 18 °C or 28 °C to 45 °C), or otherwise specified.
  • Power Supply : Single 9V battery.
  • Power Consumption : 2.6mA typical
  • Low Battery : Below approx. 7V
  • APO Timing : Idle for 17 minutes.
  • APO Consumption : 50 µA typical
  • Power Supply : Single 9V battery.
  • Dimension : 186(L)mm x 87(W)mm x 35.5(H)mm; 198(L)mm x 97(W)mm x 55(H)mm with holster
  • Weight : Approx.340gm, Approx. 430gm with holster.
