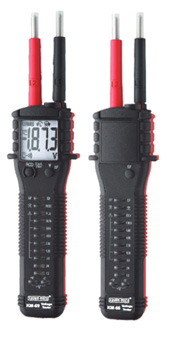

Kusum-Meco KM 69 / KM 66 Voltage Detector With RCD Load Test & EF Detection

Kusum-Meco KM 69 / KM 66 Voltage Detector With RCD Load Test & EF Detection
Product Catalogue
Special Features
  • EF-Detection
  • RCD leakage-path (KM 69)
  • LCD Indication (KM 69)
  • RST Phase Rotation Detection (KM 69)
  • AC-Detection Shaker (KM 69)

Voltage Detector With RCD Load Test & EF Detection

MODEL- KM 69 (14 functions 19 ranges) / KM 66 (6 functions 14 ranges)

General Specifications
  • LCD Display : 3½ Digits 1999 counts (KM 69)
  • Update Rate : 5 per second nominal (KM 69)
  • Sensing : TRMS sensing for LCD indication (KM 69); Average sensing for LED indication(KM 66)
  • Operating Temperature : -10° C ~ 55° C
  • Relative Humidity : ≤ 90%
  • Altitude : Operating below 2000m
  • Storage Temperature : -20° C ~ 65° C, £ 80% R.H. (with battery removed)
  • Temperature Coefficient : Nominal 0.15 X (specified accuracy) / ° C @ (10° C ~ 18° C or 28° C ~ 50° C), or otherwise specified
  • Pollution Degree : 2
  • Low Battery : Below approx. 2.6V
  • APO Timing : Idle for 16 seconds
  • Power Consumption (typical) : 2.7mA for Power-on ready & DCV; 50mA for ACV (with shaker on)
  • 105mA For RCD; 40mA for Buzzer on @ Continuity or EF function; 55mA for resistance or capacitance;
  • Add 30mA for backlight on. (KM 69).
  • 1mA for Power on ready; 40mA for Buzzer on @ Continuity of EF function (KM 66).
  • APO Consumption (typical): 12 µA (KM 69), 6 µA (KM 66)
  • Power Supply : 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery x 2
  • Dimension : 278(L) x 57(W) x 40(H)mm
  • Weight : Approx. 235gm
