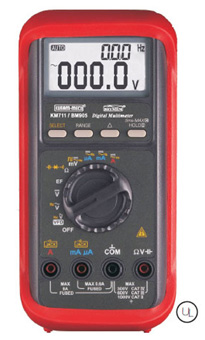

Kusum-Meco KM 711 6,000 Counts Dual Display Digital Multimeter With VFD Feature
Special Features
- VFD-V & VFD-Hz in Dual Display
- 5msCREST-MAX capture mode (Peak Hold)
- Autoranging Relative -Zero mode
- Display Hold
- EF-Detection (NCV)
- Beep-Jack input warning
- Hz Line Level Frequency
- Hz Logic Level Frequency
- Diode Test
- Continuity Test
6,000 Counts Dual Display Digital Multimeter With VFD Feature
Model KM-711 (16 functions 56 ranges)
General Specifications
- Sensing : Average sensing
- Display : 3-5/6 digits 6000 counts + 3 digits 999 counts dual LCD display
- Update Rate : 5 per second nominal
- Polarity : Automatic
- Low Battery : Below approx 2.4V
- Operating Temperature : 0 °C to 40 °C
- Relative Humidity : Maximum 80% R. H. For temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40 °C
- Altitude : Operating below 2000m
- Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
- Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 °C--18 °C or 28 °C--40 °C), or otherwise specified
- Power supply : Standard 1.5V AAA Battery x 2.
- Power Consumption : 5.4mA typical
- APO Timing : Idle for 34 minutes
- APO Consumption : 10 μA typical
- Dimension : 186(L) x 87(W) x 35.5(H) mm ; 198(L) x 97(W) x 55.5(H) mm with Holster.
- Weight : Approx. 340 gms; 430gm with holster.
