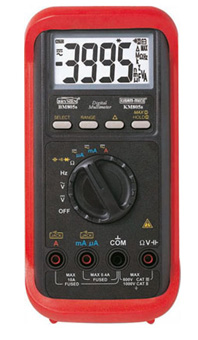

Kusum-Meco KM 805s 4000 Counts Autoranging Digital Multimeter
- Sensing : Average sensing
- Display : 3-3/4 digits 4000 counts large easy to read LCD display
- Update Rate : 3 per second nominal
- Polarity : Automatic
- Operating Temperature : 0 °C to 40 °C
- Relative Humidity : Maximum 80% R. H. For temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40 °C
- Altitude : Operating below 2000m
- Pollution degree : 2
- Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
- Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 °C -18 °C or 28 °C-40 °C), or otherwise specified
- Low Battery : Below approx 2.4V
- Power supply : Standard 1.5V AAA Battery x 2.
- Power Consumption : 3.2mA typical
- Sleep mode Timing : Idle for 30 minutes
- Sleep mode Consumption : 300 μ A typical
- Dimension : 186(L) x 87(W) x 35.5(H) mm ; 198(L) x 97(W) x 55 (H) mm with Holster.
- Weight : Approx. 296 gms; 396gm with holster.
4000 Counts Autoranging Digital Multimeter
Model KM-805S
- Basic Accuracy : 0.5% DCV
- 25ms Max Hold
- Fully Autoranging
- Data Hold
- Relative Zero Mode
- Jack Beep audible warning against improper plug in
- Diode Test
- Fast audible Continuity Test
- Fire retarded case
- Splash proof construction.
- Auto power off
