Pravin Electronics & Electricals

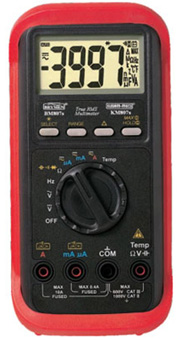

Kusum-Meco KM 822 EX Intrinsically Safe TRUE RMS Digital Multimeter With PC Interface

Special Features
  • Splash / Drop Proof
  • 1000V AC / DC
  • USB Interface
  • Dual Display
  • Backlit Display
  • Intrinsically Safe
  • Beep-JackAudible & Visible Input Warning
  • Relative Zero Mode
  • PC Interface Capability
  • Data Hold
  • Ex Rating: Ex ib IIA T4 Gb
  • 1A / 1kV (IR10kA)for mA & mA (1000V HRC Fuse)
  • 11A / 1kV (IR20kA) for A (1000V HRC Fuse)
  • These meters comply to IEC SANS 600790:2000 & IEC SANS 60079-11:1999, which is applicable for electrical apparatus for explosive gas atmospheres. Part 0 (general requirements) & part 1 (intrinsic). The approved explosive protection rating of this equipment is suitable for use in Zone 1 hazardous area. Group I (coal mines) underground & Group II (surface).

Intrinsically Safe TRUE RMS Digital Multimeter With PC Interface

Model KM 822 EX

General Specifications
  • Sensing : AC True RMS
  • Display :
    9999 Counts : ACV, DCV, Hz & nS
    6000 Counts : mV, mA, mA, A, Ohm & Capacitance
  • Update Rate :
    Digital Display : 5 per second nominal;
    41 Segments Bar-graph : 60 per second max
  • Low Battery : Below approx 7V
  • Operating Temperature : 0°C to 45°C
  • Relative Humidity : Max. 80% R.H. for Temperature up to 31°C decreasing linearly to 50% R.H. at 45°C
  • Pollution degree : 2
  • Storage Temperature : -20°C to 60°C, <80% R.H. (with battery removed)
  • Altitude : Operating below 2000m
  • Temperature Coefficient : nominal 0.15 x ( specified accuracy)/°C @ (0°C ~ 18°C or 28°C ~ 45°C), or otherwise specified
  • Power Consumption : 5mA typical
  • APO Timing : Idle for 30 minutes
  • APO Consumption : 50mA typical
  • Power Supply : Single 9V battery
  • Weight : Approx. 635gm with holster
  • Dimension : 208(L) x 103(W) x 64.5(H) mm with holster
