Pravin Electronics & Electricals

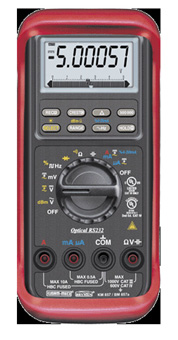

Kusum-Meco KM 857 Counts Hand Held TRMS Digital Multimeter with PC Interface
Special Features
- 500,000 counts high resolution stable reading mode.
- 20kHz Bandwidth voltage function
- Record MAX, MIN, MAX-MIN readings.
- Crest (Instantaneous Peak Hold) MAX, MIN, MAX- MIN readings.
- Relative zero mode.
- dBm readings.
- % 4 -20mA loop current readings.
- High noise rejection filtered Line Level Frequency mode.
- Line Level Frequency with 4 Trigger Levels.
- HBC Fuse Protection
5 4/5 Digits 50000 / 500,000 Counts Hand Held TRMS Digital Multimeter with PC Interface
Model KM 857 (13 functions 42 ranges)
General Specifications
- Sensing : AC, AC+DC True RMS; Frequency Bandwidth 20kHz (V) & 1kHz (A)
- Display:
4-4/5 digits 50,000 counts. Selectable stable mode
5-4/5 digits 500,000 counts for DC Voltage, &
6 digits 999,999 counts for Hz.
- Polarity :Automatic
- Update rate :
4 - 4/5digits fast mode : 5 per second nominal;
5 - 4/5 digits stable mode : 1.25 per second nominal;
42 Segments Bar Graph : 60 per second max
- Polarity : Automatic
- Low Battery :Below approx. 7V
- Operating Temperature :0°C to 45°C
- Relative Humidity : Maximum relative humidity 80% for temperature upto 30°C decreasing linearly to 50% relative humidity at 45 °C
- Pollution Degree : 2
- Storage Temperature :-20°C to 60°C, 80% R.H. (With battery removed)
- Altitude :Operating below 2000m
- Temperature Coefficient :Nominal 0.1 x (specified accuracy) / °C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified.
- Power Supply :Single alkaline 9V battery.
- Power Consumption :6mA typical
- APO Timing : Idle for 17 minutes
- APO Consumption :55 µA
- Dimension :
186(L) mm x 87(W) mm x 35.5(H) mm;
198(L) mm x 97(W) mm x 55(H) mm with Holster
- Weight :390 gm, 500 gm with Holster
