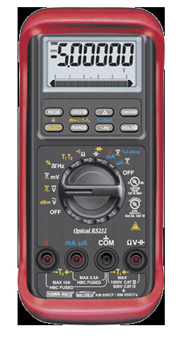

Kusum-Meco KM 859 CF 50000/500,000 Counts Hand Held TRMS Digital Multimeter With PC Interface
Special Features
- Record Max, MIN, MAX-MIN readings.
- Crest (Instantaneous Pead Hold) MAX, MIN, MAX-MIN readings.
- Relative zero mode.
- 500,000 counts high resolution stable reading mode. Backlighted display
- dBm readings.
- T1-T2 differential temperature reading s
- %4-20 mA loop current readings.
- High noise rejection filtered Line Level Frequency mode
- Line Level Frequency mode with 4 Trigger Levels.
- HBC Fuse Protection
50000/500,000 COUNTS HAND HELD TRMS DIGITAL MULTIMETER WITH PC INTERFACE
Model KM 859CF (14 functions 43 ranges)
General Specifications
- Sensing : AC, AC + DC True RMS;
Frequency Bandwidth 100kHz (V) & 10kHz (A)
- Display :
4-4/5 digits 50,000 counts. Selectable stable mode
5-4/5 digits 500,000 counts for DC voltage,
6 digits 999,999 counts for Hz
- Polarity : Automatic
- Update Rate :
4-4/5 digits fast mode : 5 per second nominal;
5-4/5 digits stable mode : 1.25 per second nominal;
42 Segments Bar graph : 60 per second max.
- Low Battery : Below approx. 7V
- Operating Temperature : -20°C to 60°C
- Relative Humidity : Maximum 90% R.H. For Temperature upto 31�C decreasing linearly to 50% R.H. at 60�C
- Pollution Degree : 2
- Storage Temperature : -20°C to 60°C, < 80% R.H. (With battery removed)
- Altitude : Operating below 2000m
- Temperature : Nominal 0.1 x (specified accuracy) / °C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified.
- Power Supply : Single Alkaline 9V battery.
- Power Consumption : 5mA typical
- APO timing : Idle for 4.5 minutes
- APO Consumption : 20µA
- Dimension :
186(L) mm x 87(W) mm x 35.5(H) mm;
198(L) mm x 97(W) mm x 55(H) mm with Holster
- Weight : 390 gm, 500 gm with Holster
