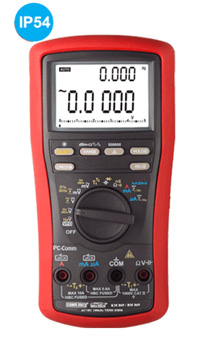

500,000 Counts Autoranging True Rms Digital Multimeter With VFD Feature & Pc Interface

MODEL KM 869 (19 functions 59 ranges)

• Sensing : AC, AC+DC True RMS
• Display :
  4-4/5 Digits 50,000 counts fast mode.
  Selectable stable mode
  5-4/5 Digits 500,000 counts for DC Voltage
  5 digits 99,999 counts for Hz
• Polarity : Automatic
• Update Rate : 4-4/5 Digits fast mode : 5 per second nominal;
  5-4/5 Digits stable mode : 1.25 per second nominal;
  41 Segments Bar-graph : 60 per second max
• Sensing : AC, AC+DC True RMS
• Operating Temperature : 0°C to 45°C
• Relative Humidity : Max. 80% R.H. for Temperature up to 31°C decreasing linearly to 50% R.H. at 45°C
• Pollution Degree : 2
• Storage Temperature : -20°C to 60°C, < 80% R.H. (with battery removed)
• Altitude : Operating below 2000m
• Temperature Coefficient : nominal 0.15 x ( specified accuracy)/°C @ (0°C ~ 18°C or 28°C ~ 45°C), or otherwise specified
• Power Consumption : 6.5mA typical; 8mA for VFD ranges
• Low Battery : Below approx 7V
• APO Timing : Idle for 17 minutes
• APO Consumption : 70μA typical
• Power Supply : Single 9V battery
• Weight : Approx. 635gm with holster
• Dimension : 208(L) x 103(W) x 64.5(H) mm with holster.
