Pravin Electronics & Electricals

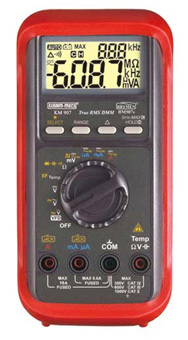

Kusum-Meco KM 907 6,000 Counts Dual Display TRMS Digital Multimeter With VFD Feature

Kusum-Meco KM 907 6,000 Counts Dual Display TRMS Digital Multimeter With VFD Feature
Product Catalogue
Special Features
  • VFD-V & VFD-Hz in Dual Display
  • Backlight LCD Display
  • 5msCREST-MAX capture mode (Peak Hold)
  • Autoranging Relative -Zero mode
  • Display Hold
  • EF-Detection (NCV)
  • AC True RMS Voltage & Current Function
  • Beep-Jack input warning
  • Hz Line Level Frequency
  • Hz Logic Level Frequency
  • Diode Test & Continuity Test

6000 Counts Dual Display TRMS Digital Multimeter With VFD Feature

MODEL KM 907

General Specifications
  • Sensing : TRMS sensing
  • Display : 3-5/6 digits 6000 counts + 3 digits 999 counts dual LCD display
  • Update Rate : 5 per second nominal
  • Polarity : Automatic
  • Low Battery : Below approx 2.4V
  • Operating Temperature : 0 °C to 40 °C
  • Relative Humidity : Maximum 80% R. H. For temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40 °C
  • Altitude : Operating below 2000m
  • Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
  • Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 °C -18 °C or 28 °C-40 °C), or otherwise specified
  • Power supply : Standard 1.5V AAA Battery x 2.
  • Power Consumption : 5.4mA typical
  • APO Timing : Idle for 34 minutes
  • APO Consumption : 10mA typical
  • Dimension : 186(L) x 87(W) x 35.5(H) mm ;
    198(L) x 97(W) x 55.5(H) mm with Holster.
  • Weight : Approx. 340 gms; 430gm with holster.
