Pravin Electronics & Electricals

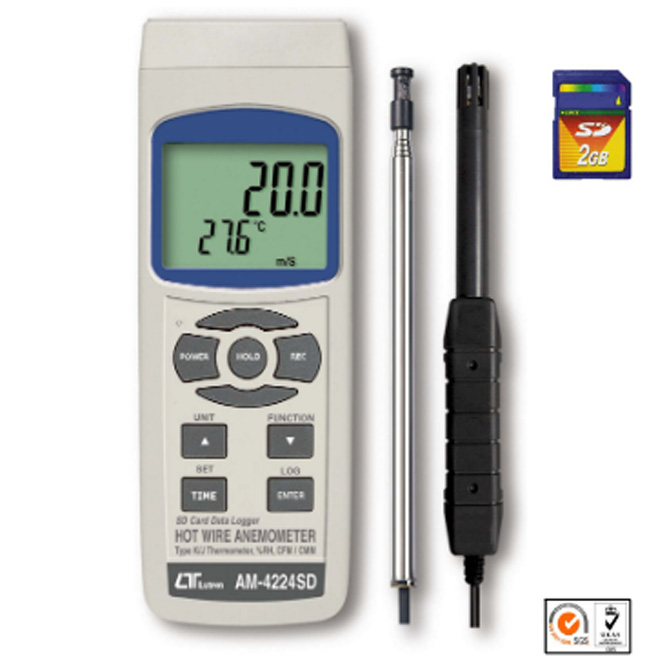

LUTRON 4224 SD Hot Wire Anemometer

Model Name/Number 4224SD
Circuit Custom one-chip of microprocessor LS circuit
Power off Auto shut off saves battery life or manual off (REC function)
Brand Lutron
Sampling Time Approx. 1 second
Operating Humidity Less than 85% RH.
Operating Temperature 0 to 50 .
Weight 347 g/ 0.76 LB. * Meter only
Dimension 182 x 73 x 47.5 mm ( 7.1 x 2.9 x 1.9 inch )
Features
  • Complete set with two probes : Hot wire anemometer probe and Humidity/Temp. probe.
  • Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value.
  • Slim probe, ideal for grilles & diffusers.
  • Air velocity : m/s, Ft/min, Km/h, Knot, Mile/h,
  • Air flow ( CFM, CMM ) measurement.
  • Air temperature ( °C, °F )
  • Air Temp. used thermistor sensor, fast response time.
  • Humidity : 10 to 95 %RH, Dew point, Wet bulb.
  • Type K, Type J thermocouple thermometer.
  • Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
  • Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
  • Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
  • SDcardcapacity:1GBto16GB.
