Pravin Electronics & Electricals

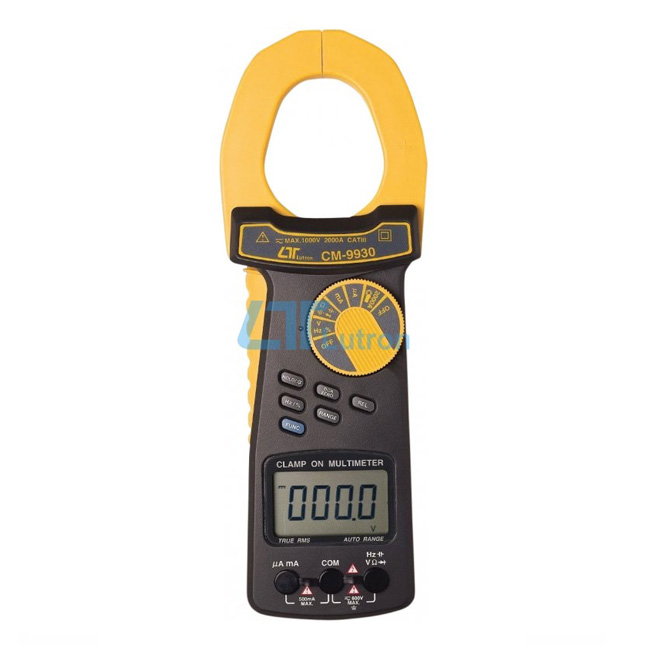

LUTRON CM 9930 ACA/DCA 2 in 1, 2000A Clamp Meter + Digital Multimeter

Brand Name Lutron
Power supply 9 V battery
Dimensions 73 x 255 x 38 mm
Weight 380 g
UAC / DC 400 mV / 0.1 mV (DC only); 4 V / 0.001 V; 40 V / 0.01 V; 400 V / 0.1 V; 1000 V / 1 V
IAC / DC (direct): 400 uA / 0.1 uA; 4000/1 uA; 40 / 0.01 mA; 400 mA / 0.1 mA
IAC / DC: (clamp): 400 A / 0.1 A; 2000 A / 1 A
R 400 Ω / 0.1 Ω; 4 kΩ / 1 Ω; 40 kΩ / 10 Ω; 400 kΩ / 0.1 kΩ; 4 MΩ / 1 kΩ; 40 MΩ / 10 kΩ
F 5 Hz / 0.001 Hz; 50 Hz / 0.01 Hz; 500 Hz / 0.1 Hz; 5 kHz / 1Hz; 50 kHz / 10 Hz; 100 kHz / 100 Hz
C 50 nF / 10 pF; 500 nF / 100 pF; 5 uF / 0.001 uF; 50 uF / 0.01 uF
Features
  • 2 in 1, 2000 A clamp meter +Digital multimeter.
  • Meet IEC 1010 CATIII 1000V safety requirement.
  • True rms reading for ACV & ACA measurement.
  • 4000 counts, Auto range, multi-functions for ACA, DCA, ACV, DCV, Ohms, Capacitance, Hz, Diode, Duty cycle and continuity check.
  • LSI circuit provides high reliability and durability.
  • Wide ranges ( 2000A, 400 A ) clamp on current measurement both for ACA & DCA.
  • 4 ranges ( 400 uA, 4000 uA, 40mA, 400 mA ) direct current input measurement both for ACA & DCA.
  • Overload protection circuit is provided for all ranges.
  • Data hold, Relative key, Back light.
