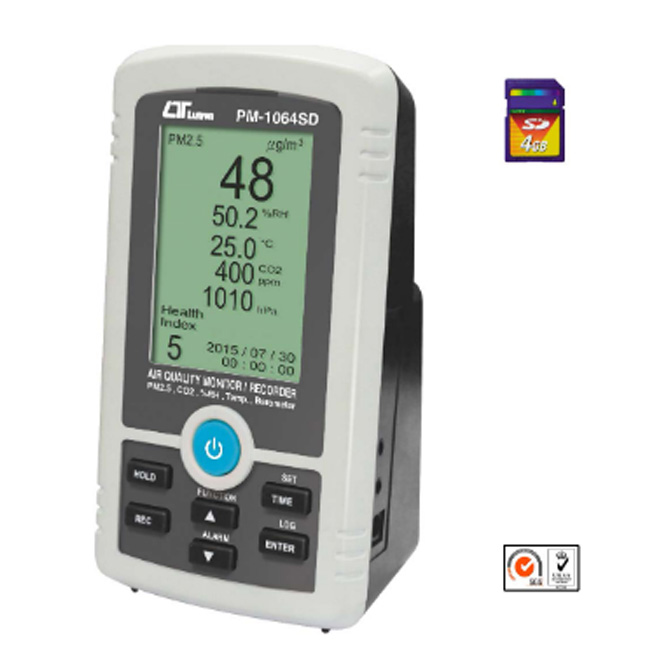

LUTRON PM 1064SD Air Quality Mointor / Recorder
| Display | LCD Size: 2.18 X 2.87" (55.4 X 72.9 mm). |
| Circuit | Custom one-chip of microprocessor LSI circuit |
| Over-range | * LCD display show " OL ".. * The data save into the Micro SD card will show " 999 " (overleap the decimal point) |
| Data Hold | Freezes displayed reading |
| Memory Recall | Maximum & Minimum value |
| Data Recording | SD memory card ( 1 GB to 32 GB ). |
| Sampling Time | Approx. 1 second |
| Operating Temperature. | 0 to 50 ( 32 to 122 ). |
- Monitoring air pollutant source from dust, petrochemical industry, steel-making plant, thermal power plant, restaurant, smoke, burning plants, driving automobiles.
- The meter is a real-time air quality monitor instrument used to monitor the concentration of PM2.5, humidity and temperature in the indoor environment.
- PM2.5 : 0 to 250 μ g/m^3, Humidity : 5 to 95 %RH, Temperature : 0 to 50 , / .°C °C °F
- CO2 : 0 to 10,000 ppm, Barometer : 10 to 1100 hPa, mmHg, inHg.
- PM2.5 time weighted average reading.
- Data hold, Record(Max,Min)
- Alarm setting with the beeper sound output.
- Health index ( 0-9 ) detection and alarm.
- Built-in clock and Calendar, real time data record with SD memory card, sampling time can be set from 1 second to 3600 seconds. Just slot the SD card into the computer, all the measured values with the time information ( year, month, data, hour, minute, second ) can be downloaded to the Excel directly, then user can make the further data analysis by themselves.
- Manual data record is available, can set the different position(location) No.( 1 to 99 ).
- SD card capacity : 1GB to 32GB.
- Dot matrix LCD display.
- Power by UM3/AA(1.5V) X 6 batteries or DC 9V adapter
- RS232/USB PC computer interface
