LUTRON PM 9107 Digital Manometer : 7000 mbar, Dual & differential input

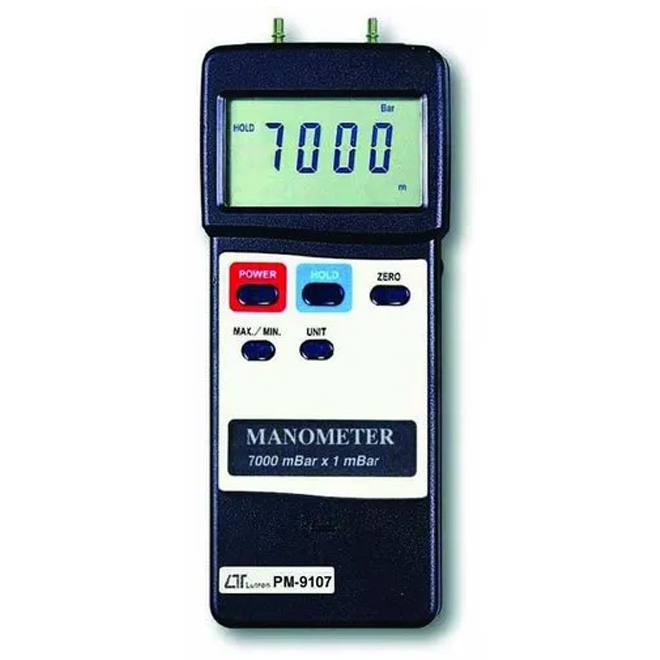

LUTRON PM 9107 Digital Manometer
Product Catalogue
  • Circuit :Microprocessor LSI circuit.
  • Display :61 mm x 34 mm supper large LCD display. 15 mm ( 0.6" ) digit size.
  • Display units :mbar, psi, Kg/cm^2, mm/Hg, inch/Hg meter/H2O, inch/H2O, Atmosphere.
  • Function :Dual & differential input, data hold, zero/relative, memory.
  • Zero adjust :Push button on the front panel.
  • Span adjust :Push button gain adjustment, usage for calibration precisely if necessary.
  • Sensor :* Sensor is built inside the housing. * Piezoelectric sensor. * Used for dry, non-corrosive and non-ionic air and gas only. * Liquid is prohibited.
  • Data hold :By push button.
  • Data record :Record maximum & minimum readings.
  • Data output :RS 232 PC serial interface.
  • Power off :Auto shut off, saves battery life, or manual off by push button.
  • Sampling time :Approx. 0.8 second.
  • Operating temperature :0 to 50 ( 32 to 122 ).
  • Operating humidity :Less than 80% R.H.
  • Power supply: 006P DC 9V battery(heavy duty).
  • Power current :Approx. DC 8.5 mA.
  • Weight :345 g/0.76 LB
  • Dimension :180 x 72 x 32 mm
  • Accessories included :* Instruction manual, * Hard carrying case
