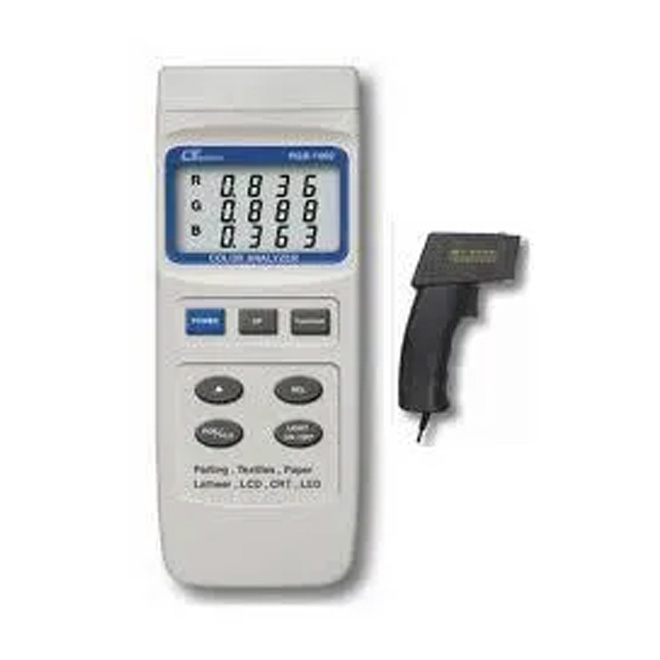

Lutron RGB-1002 Color Analyzer

Display LCD size : 59 mm x 34 mm.
Measuring geometry 45° /0° - circular illumination at 45°, measurement at 0°.
Spectral range :400 nm to 700 nm
Light source : Two white LED lamp.
Measurement : RGB value :R ( Red ) value : 0 to 1023.
Color sensors : 3 color photo transistors :
Red photo transistor, Green photo transistor, Blue photo transistor
Features
  • The RGB-1002 is a portable color analyzer equipped with an external sensor probe having a 45° /0° color measuring geometry. The modem, accurate microprocessor technology uses the spectral analysis method to determine the color of the sample. Excellent repeatability due to spectroscopic analysis technique used.
  • Friendly operation, just press the operation button will get the color value ( R, G, B or H, S, L ).
  • Relative function, can easy to compare the color value of the different two measurement material.
  • The RGB-1002 is designed mainly for measuring the color of no lighting sample such as textiles, paper, leathers, painting materials. It is the useful tool for the quality control and the wide industrial application.
  • The color analyzer also can measure the reference lighting sample color value such as CRT, LCD monitor, LED lamp, lighting lamp.
  • For no lighting sample color measurement, a defined light source illuminates the sample and the reflected surface light is spectrometrically analyzed.
  • For lighting sample color measurement, the light source of sample is spectrometrically analyzed directly.
  • RS232 computer interface, can store the measuring color value in the computer for recording and the further color analysis.
