Pravin Electronics & Electricals

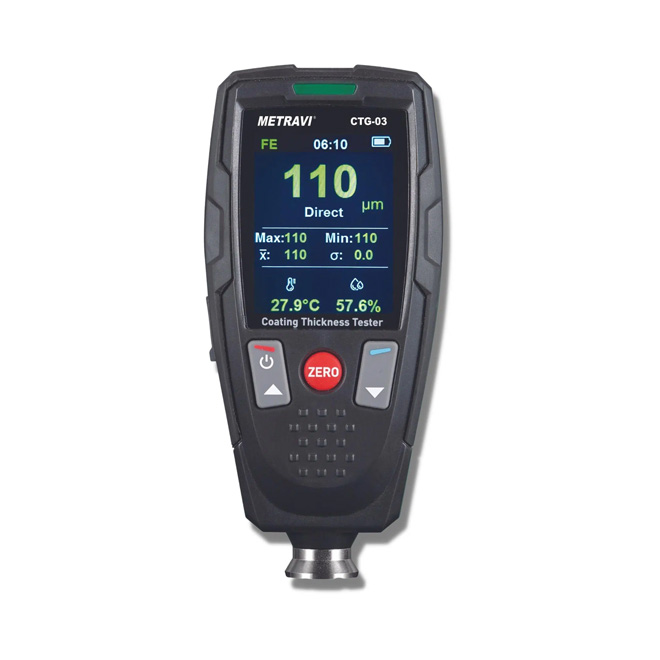

METRAVI CTG-03

Digital Ultrasonic Thickness Meter to measure 0.75 ~ 400mm with sturdy metal body and better resolution

Features
  • Measures Coatings: Non-magnetic (e.g. paint, zinc) on steel; Insulated (e.g. paint, anodised coatings) on non-ferrous metals
  • Measuring Range: 0 ~ 2000μm
  • Auto-rotation Screen: 0°, 90°, 180°, 270°
  • 2.4" TFT colour LCD display
  • Guaranteed to Lerance (of reading): (±2%±2)µm
  • Low Range Precision 0.1μm
  • Temperature, Humidity and Dew Point temperature measurements
  • Stability test & Continuous test
  • Set auto power-off time
  • SSPC mode
  • Warning with beeper and backlight flash, 3-Colour LED indication
  • Menu operation system
  • Working modes: DIRECT, GROUP and SSPC
  • AVG, MAX, MIN, Stand and Deviation (S.DEV) display
  • Basic, one-point and SSPC mode calibration
  • USB interface for PC analysis software
  • 10 levels of adjustable LCD backlight brightness
  • Low battery, error indications
