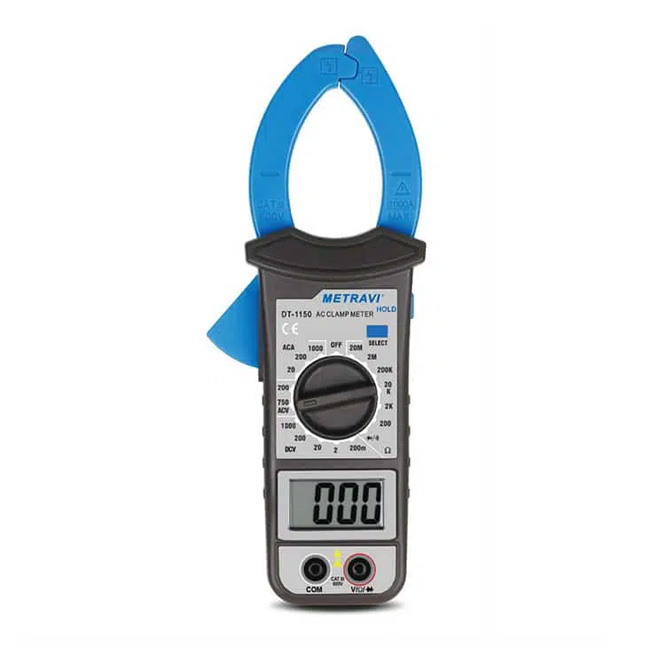

METRAVI DT-1150

Model Name/Number METRAVI DT-1150
Warranty One year against manufacturing defects
Colour Blue-Black
Display LCD
Data Hold Data Hold
Overload Indication Overload Indication
Low Battery Indication Low Battery Indication
Diode & Continuity Diode & Continuity test
Jaw Dia 40mm
AC or AC/DC AC
AC Voltage Range 0-200V/750V
DC Voltage Range 0-200mV/2V/20V/200V/1000V
AC Current Range 0-20A/200A/1000A
Resistance Range 0 to 20MΩ
AC Voltage Accuracy ±1.5%
DC Voltage Accuracy ±0.8%
AC Current Accuracy ±3.0%
Resistance Accuracy ±1.5%
Features
  • Display : 3 ½ Digit 2000 count LCD, with auto polarity conversion
  • Over Range Indication : OL will be shown on the LCD
  • Hold : Data hold on
  • Low Battery Indication
  • AC Voltage : 200/750V
  • DC Voltage : 200mV / 2V / 20V / 200V / 1000V
  • AC Current : 20A / 200A / 1000A
  • Resistance : 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
  • Diode and Continuity test
  • Jaw Opening : Approx. 40mm
  • Overload Protection
  • CE CAT III 600V
  • Dimension : 250(L) × 97(W) × 48(H) mm
  • Weight : 345gm approx.(including battery)
