Pravin Electronics & Electricals

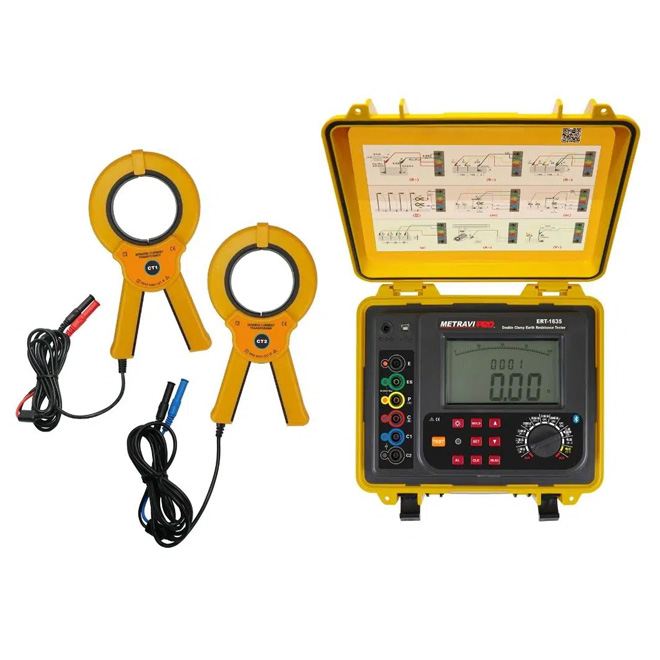

METRAVI PRO ERT-1635
| Model | PRO ERT-1635 |
| Brand | Metravi |
| Overload Indication | Overload Indication |
| PC Interface | USB Interface |
| Short-circuit Current | 250mA AC |
| Overload Indication | Overload Indication |
| Power Source | Battery Operated |
| Battery Type | Li-Ion Rechargeable |
| Data Logging | 2000 groups |
- Protection grade IP65 – waterproof, dust-proof, shockproof
- Large-capacity rechargeable lithium battery pack especially suitable for outdoor construction
- 2/3/4-wire Method Measure Earth Resistance:
Range : 0.00Ω ~ 30KΩ
Resolution : 0.01Ω
Accuracy : ±2%rdg±3dgt - Selection Method Measure Earth Resistance:
Range : 0.00Ω ~ 3000Ω
Resolution : 0.01Ω
Accuracy : ±2%rdg±3dgt - Double Clamp Method Measure Earth Resistance:
Range : 0.00Ω ~ 100Ω
Resolution : 0.01Ω
Accuracy : ±10%rdg±5dgt - Earth Voltage Measurement:
Range : 0.0 ~ 100.0V AC
Resolution : 0.1V
Accuracy : ±2%rdg±3dgt - Earth Current Measurement Range:
Range : 0.0mA ~ 600.0A
Resolution : 0.0mA
Accuracy : ±2%rdg±3dgt - Soil Resistivity Measurement (ρ):
Range : 0.00Ωm ~ 9000KΩm
Resolution : 0.01Ωm
CT Size φ70mm - Short-circuit Test Current AC 250mA max
Open-circuit Test Current AC 40V max
Test Frequency 128Hz / 111Hz / 105Hz / 94Hz (AFC) - Automatic Shutdown 15 Minutes after power on, will automatic shut down without any operation
- Test Wires Included: Red 20m, black 20m, yellow 10m, green 10m, red 1.6m, black 1.6m (total 6 pcs wires)
- Auxiliary Ground Rod 4pcs : φ10mm × 150mm
- Data storage 2000 groups, data access and data upload via USB interface
- With USB interface, software monitoring, storage data can be uploaded to computer, saved and printed.
- Bluetooth Communication Support the bluetooth communication function of Android system, after installation the APP, mobile terminals can be used to testing operations and view test records.
- Alarm Function measurement value exceed alarm setting value, will "Toot-toot-toot" alarm indication
- While battery voltage decreases to around DC 7.2VÅ}0.1V, will display low battery voltage symbol " ", and remind to replace the battery.
- Accessories: Tester : 1PC; Current Clamp Sensor : 2PCS; Ground Rod : 4PCS; Testing wires : 6PCS; USB Communication Cable : 1PCS; Special Charger : 1PCS; Tester Bag : 1PCS
