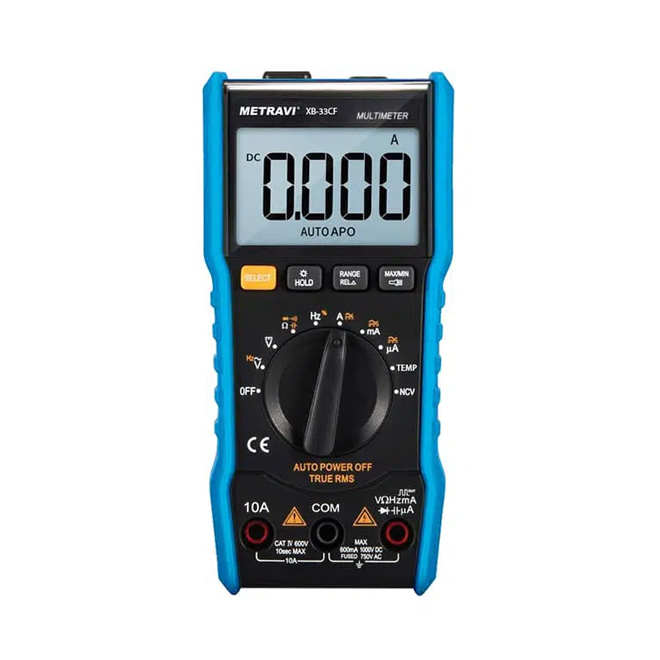

METRAVI XB-33CF
| Model | XB-33CF |
| Brand | Metravi |
| Warranty | One year against manufacturing defects |
| Display | Blacklit LCD |
| Auto Ranging | Auto Ranging |
| Data Hold | Data Hold |
| NCV Detection | Non-contact Voltage Detection |
| Sampling Time | 3 times/sec |
- Display, liquid Crystal Display (LCD)
- Maximum display : 6000 (5 5/6) Counts Automatic Polarity Display
- Measurement : Double Integral A / D Conversion
- DC Voltage : 6V/60V/600V/1000V
- Accuracy : ± (0.5%+3)
- AC Voltage TRMS: 6V/60V/600V/750V
- Accuracy : ± (0.8%+3)
- DC Current : 600uA/6000uA/60mA/600mA/6A/10A
- Accuracy : ± (1.2%+10)
- AC Current : 600uA/6000uA/60mA/600mA/6A/10A
- Accuracy : ± (1.2%+10)
- Resistance : 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ
- Accuracy : ± (0.8%+3)
- Capacitance : 60nF/600nF/6uF/60uF/600uF/6mF/30mF
- Accuracy : ± (3.5%+20)
- Frequency : 10Hz/100Hz/1kHz/10kHZ/100kHz/1MHz/20MHz
- Accuracy : ± (0.1%+3)
- Temperature : (-20-1000 )˚C
