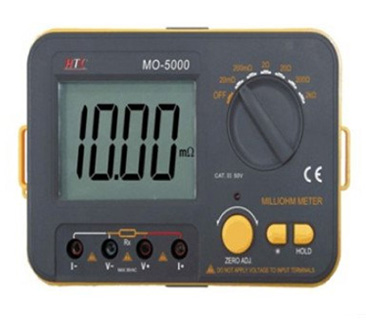

MO-5000 HTC Digital Milliohm Meter
| Brand | HTC |
| Dimensions | 176 x 116 x 63 mm ( L x W x D ) |
| Model No | MO-5000 |
| Power Consumption | Quiescent Current Approx 50mA |
| Low Battery Indication | Less Than Approx 7.5V |
| Sampling Rate | 3 times/sec |
| Power Source | 1.5V AA battery x 6 pcs, or external DC 9V power Source |
| Model No | MO-5000 |
| Operation Mode | Manual range |
| Max Display | 1999 |
| LCD Size | 75 x 52 mm |
- Large LCD Display for easy reading
- 4 wire testing, capable of testing exreame low resistance
- Accurate measurement of conductor,electric heading elements and solder point
- HOLD key for data hold
- Connection for exernal power supply
- High measurement range of 0.01mΩ to 2kΩ at 6 ranges
- Backlight LCD for easy reading under dark light
- Strong anti-magnetic and anti-jamming functions
- Full function Protection
