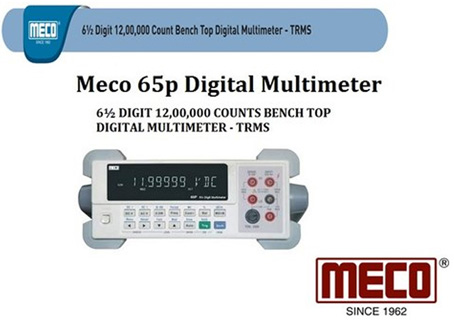

Meco 65P, 6 1/2 Digit 12,00,000 Counts Bench Top Digital Multimeter
Model Name/Number |
MECO 65P |
Brand |
Meco |
Warranty |
1 Year |
Digit Display |
61/2 |
4 DIGIT 9999 COUNT TRMS AUTORANGING POCKET SIZE DMM
Features
- 6½ Digit Display (11,99,999 counts)
- TRMS
- 12 Different Measurement Capabilities ; DCV / ACV, DCI / ACI, Ω2W / Ω4W, Frequency / Period, Diode Test, Continuty, dB /dBm
- High brightness vacuum fluorescent display
- True-rms AC voltage and current measurement, bandwidth up to 300kHz
- DCV measurement accuracy up to 0.0035%, resolution up to 0.1μV
- Max. measurement rate : 1000 meas / sec
- Equal accuracy frequency measurement up to 1.1 MHz
- Relative mode (REL) to eliminate residual reading
- 2W, 4W resistance measurement mode selectable
- Built-in mX +b, %, dB, dBm etc mathematics calculation function
- 512 reading storage and MAX / MIN / AVER / STD statistics
- HI / IN / LO comparator function
- USB and RS-232 Interfaces provide easy system communication
- Calibration without opening the case
- 10 sets of multimeter setup can be stored and loaded
General Specifications
- Operating Temperature & Humidity 0°C - 40°C,≤ 90% RH
- Power Requirements Voltage 110V/220V AC ± 15%
- Frequency 50Hz/60Hz ± 5%
- Power Consumption ≤ 20VA max.
- Dimensions 265 x 105 x 360mm (approx.)
- Weight 2.86.35kg (approx.)
Accessories
- Pair of Test Leads x 1
- Power Cord x 1
- Fuse (500mA) x 2
- Fuse (1A) x 2
- USB Cable x 1
- Operation Manual x 1
- Test Report x 1
- RS232 Cable x 1 (Optional)
