Pravin Electronics & Electricals

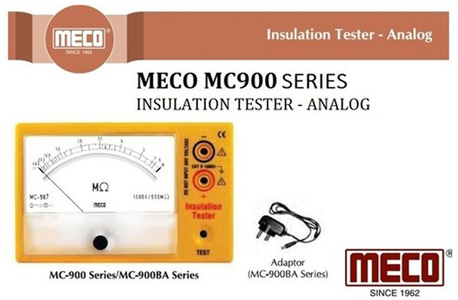

Meco MC 900 Series, Insulation Tester - Analog
Usage/Application |
Industrial |
Model Name/Number |
MECO MC900 SERIES |
Test Voltage |
100V TO 1000 V |
Range |
0 - 20 M OHMS TO 2000 M OHM |
Color |
Yellow |
Accuracy |
+- 5% of Indicated Value
at 27 Degree C +- 5 Degree C |
INSULATION TESTER - ANALOG
Features
- Single Person Push Button Operation
- High Accuracy ± 5% of Indicated Value in Effective Range
- Scale Length : 80 mm (approx)
- Terminal Voltage : > 85% of Rated Voltage for Insulation Resistance
- Measurement from 10% to 100% of the Insulation Resistance Range
- ABS Resin Yellow Case with Polycarbonate Meter Front Cover
- Meets Requirement of IEC 61010, Installation Category II, 1000 V Phase Earth
- Designed to Generally Confirm to IS 10656-1983
- 7 Models with various Voltage to MOhm Ranges
- Battery Adaptor (Optional) for MC-900BA Series
Features
Ideal for Insulation Resistance Measurement of
- Ideal for Insulation Resistance Measurement of
- Electrical Equipment (Motors, Transformers, Machine, etc)
- Cables for Communication Networks
- Industrial, Commercial & Residential Installations
- Electrical Cables for Distribution Networks
- House Hold Appliances (Washing Machines, Mixer, Toaster etc.)
