Pravin Electronics & Electricals

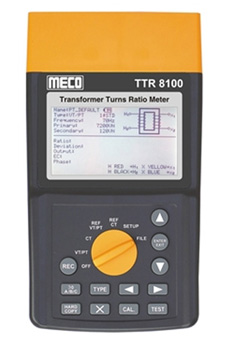

Meco TTR 8100 Transformer Turns Ratio Meter
- Measurement of 1 Φ and 3 Φ Transformer / VT / CT Turns Ratio
- VT / PT Ratio 0.8 ~ 2000, Ct Raio 0.8 ~ 2000
- Graphical and Literal Illustration of Measurements and connections with Large Back - Lighted Dot Matrix 240 x 128 LCD
- Displays Turns Ratio, Deviation, Secondary Output, Excitation Voltage and Current, Phase Angle and Nameplate. Transformer VT / CT Values in one page for easy quality interpretation
- Check for Live Test Points, Short Circuit, Open Circuit and Reverse Polarity before each measurement
- Store 4096 Files of Transofrmer Nameplate Values (VT / PT / CT 1 Φ / 3Φ, Test Frequency, Primary and Secondary Voltages or Ratio, RCF) and Measuring Data.
- Ten Test Frquencies (50 ~ 400 Hz)
- 9 Types of 3 Φ Winding Connection pre - installed
- Wireless Blue Tooth Communication with PC
- Select Filter to Remove Field noise (Slow, Normal, Fast)
- Record with Date and Time Stamp
- Powerful Lithium Battery (3400mAH) with built - in Charging Circuit
- User Programmable RCF (Reference Correction Factor, 0.99 ~ 1.01) to Correct Accuracy within 1% Error
- PC Application Software Included
- Friendly File System for Easy On - Site Data Retrieval and Nameplate Values Management
